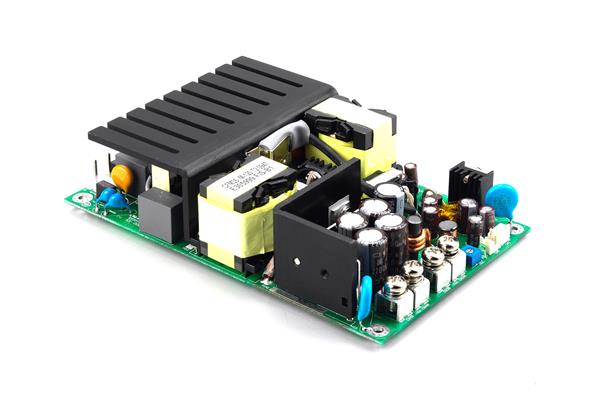

Cincon CFM351M050 ເຊັດຊິ້ງ ຊະນິດ AC-DC ພາວເອີ ມີ PFC, ທາງການແພດ, 350 ວັດ, ອິນພຸດ 90-264VAC, ອອກຫຼັກ +5VDC, ອອກສະຖານະພັກ +5VDC, ອອກພັງ +12VDC

Width: 101.6 mm (4 in)

Height: 38.6 mm (1.52 in)

Length: 165 mm (6.496 in)

Industry: Medical

Approvals: EN60601-1

Compliance: EN60601-1

Efficiency: 88 %

Output Power: 350 W

Input Voltage: 90 VAC to 264 VAC

Cooling Method: Convection

Mounting Style: PCB

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 5.66 kVDC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 60 A

Output Voltage-Channel 1: 5 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
