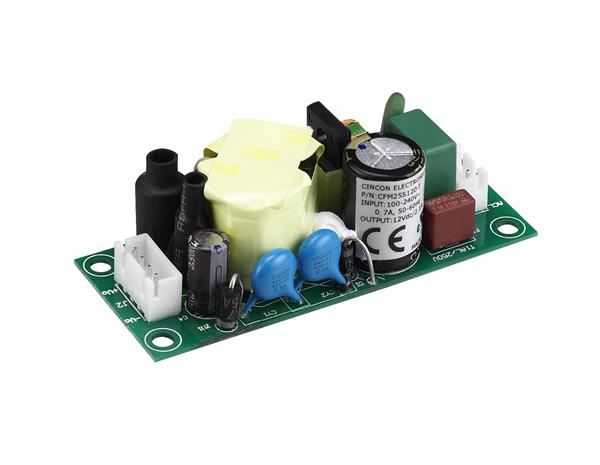

Cincon CFM25S360-TPL ຕົວແປປະຕິບັດ AC-DC AC-DC ພາວເອີ ເຟຣມເປີດ, 25 ວັດ, ອອກພວດເດີຍດຽວ, ອອກພວດ 36VDC, 0.7A, ປະສິດຕິພາບ 87%, Wafer, Peak Load

Width: 27.94 mm (1.1 in)

Height: 23 mm (0.906 in)

Length: 70.5 mm (2.776 in)

Industry: Industrial

Efficiency: 87 %

Output Power: 25 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3000 Vrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 700 mA

Output Voltage-Channel 1: 36 VDC

Operating Temperature Range: - 30 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
