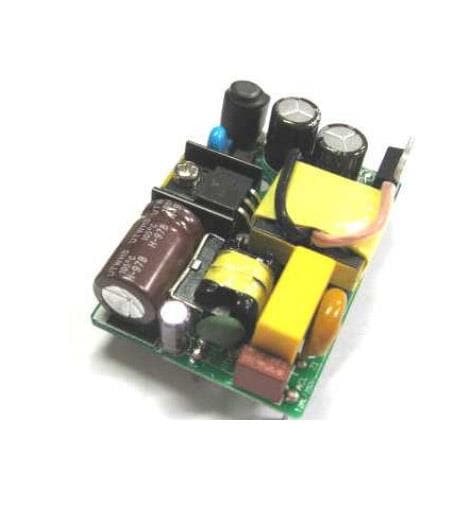

Cincon CFM21S120 ມູດູນເຊັດສະຫຼຸບ AC-DC, 20 ວັດ, ອອກດຽວ, ອິນພຸດ 90-264VAC, ອອກ 12VDC

Width: 40.6 mm (1.598 in)

Height: 20.4 mm (0.803 in)

Length: 60.5 mm (2.382 in)

Industry: Medical

Efficiency: 83 %

Output Power: 20.4 W

Input Voltage: 90 VAC to 264 VAC

Cooling Method: Convection

Mounting Style: PCB

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 5.66 kVDC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 1.7 A

Output Voltage-Channel 1: 12 VDC

Operating Temperature Range: - 25 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
