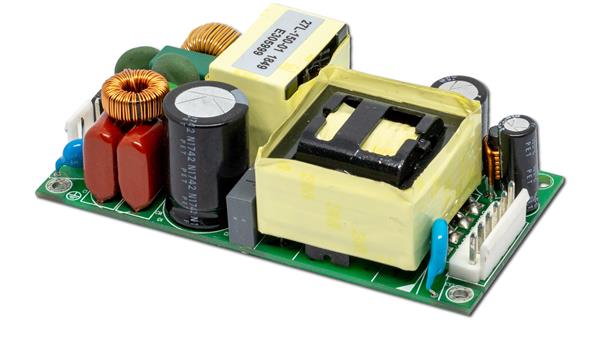

Cincon CFM150S280 ຕົວແປ AC-DC 120W 28V 4.28A

Width: 50.8 mm (2 in)

Height: 32.6 mm (1.283 in)

Length: 101.6 mm (4 in)

Industry: Industrial

Approvals: IEC/EN60335-1/60601-1

Efficiency: 94 %

Unit Weight: 200 g

Output Power: 120 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 4.28 A

Output Voltage-Channel 1: 28 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 30 C
