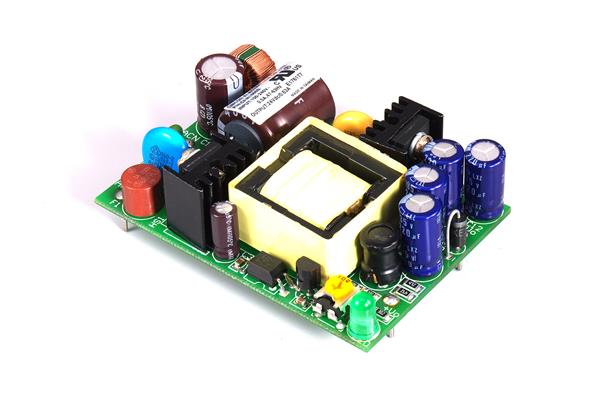

Cincon CFM1503S ແມ່ພະລັງງານສະຫນັບສະຫນູນ AC-DC Module, 15 Watt, Open Frame, 85-264VAC Input, 15VDC Output

Width: 48 mm (1.89 in)

Height: 23 mm (0.906 in)

Length: 69.9 mm (2.752 in)

Industry: Industrial

Efficiency: 81 %

Unit Weight: 200 g

Output Power: 15 W

Input Voltage: 85 VAC to 264 VAC

Cooling Method: Convection

Mounting Style: Through Hole

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 4.24 kVDC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 1 A

Output Voltage-Channel 1: 15 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
