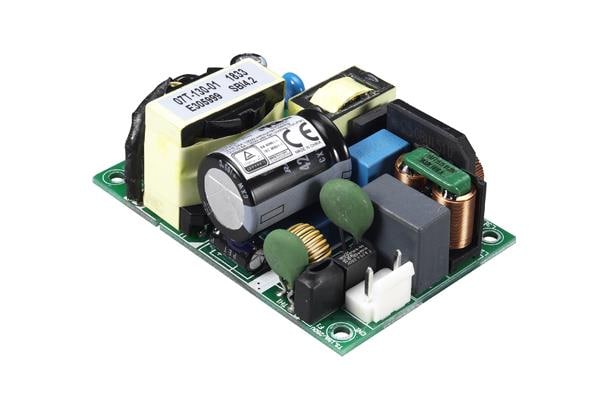

Cincon CFM130M240 ອຸປະກອນຈົດສະຫຼຸບພະລັງງານ 130W 24V 4.2A ທາງການແພດ

Width: 50.8 mm (2 in)

Height: 30.5 mm (1.201 in)

Length: 76.2 mm (3 in)

Industry: Medical

Approvals: IEC/EN60335-1

Compliance: IEC/EN60335-1

Efficiency: 93 %

Unit Weight: 135 g

Output Power: 130 W

Input Voltage: 80 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Power - Convection: 100 W

Power - Forced Air: 130 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 5.4 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 30 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
