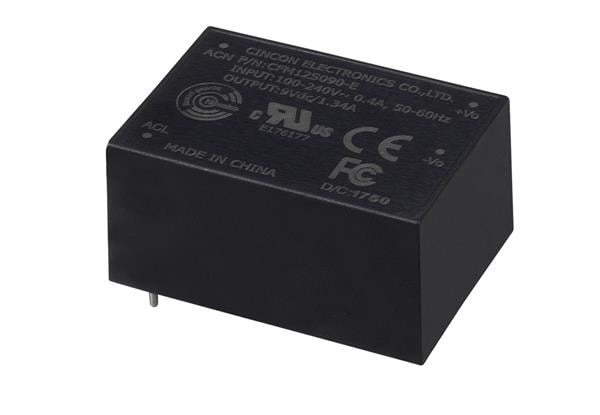

Cincon CFM12S090-E ຕົວແປປະຕິບັດ AC-DC AC-DC Module, 12 Watt, Open Frame, Encapsulated, 90-264VAC Input, 9VDC Output

Width: 27.94 mm

Height: 19.6 mm

Length: 40.64 mm

Industry: Industrial

Approvals: IEC62368-1, UL62368-1

Compliance: IEC62368-1, UL62368-1

Efficiency: 83.26 %

Unit Weight: 40 g

Output Power: 12 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Through Hole

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 1.34 A

Output Voltage-Channel 1: 9 VDC

Operating Temperature Range: - 30 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
