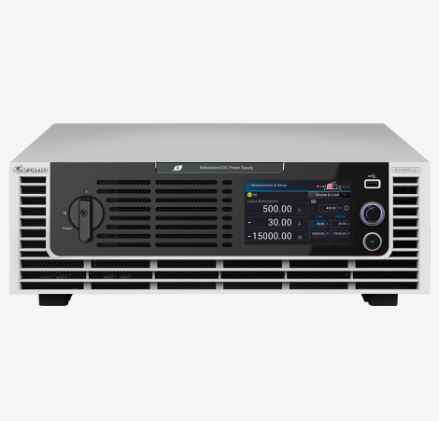

CHROMA 62120D-1200 ການສະຫນອງພະລັງງານ DC ແບບສອງທິດທາງ (1200V, 40A, 12KW)
Source/Sink Voltage: 1200V
Source/Sink Current: ±40A
Source/Sink Power *1: 12kW
Line Regulation
Voltage: ±0.01% F.S.
Current: ±0.05% F.S.
Load Regulation
Voltage: ±0.04% F.S.
Current: ±0.1% F.S.
Voltage Measurement
Range: 240V /1200V
Accuracy: 0.05% + 0.05%F.S
Current Measurement
Range: 8A / 40A
Accuracy: 0.1% + 0.1%F.S.
Output Noise & Ripple
P-P (20MHz): 840mV
rms (Voltage): 170mV
rms (Current): 30mA
Programming Response Time
Rise Time (Full Load): 10 ms
Rise Time (No Load): 10 ms
Fall Time (Full Load): 10 ms
Fall Time (No Load): 10 ms
Slew Rate Control
Voltage slew rate range (No Load): 0.001V/ms~ 10V/ms
Voltage slew rate range (Full Load): 0.001V/ms~10V/ms
Current slew rate range 0.001A~10A/ms
Minimum transition time (CV): 0.5ms
General Specification
Maximum Remote Sense Line Drop Compensation: 2% of full scale voltage per line (4% total)
Operating Temperature Rage: 0℃~40℃
Storage Temperature Rage: -25℃~70℃
Dimension Size (HxWxD) mm: 133 x 428 x 730 mm / 5.23 x 16.85 x 28.74 inch
Weight (kg): 32 kg/70.5 lbs
