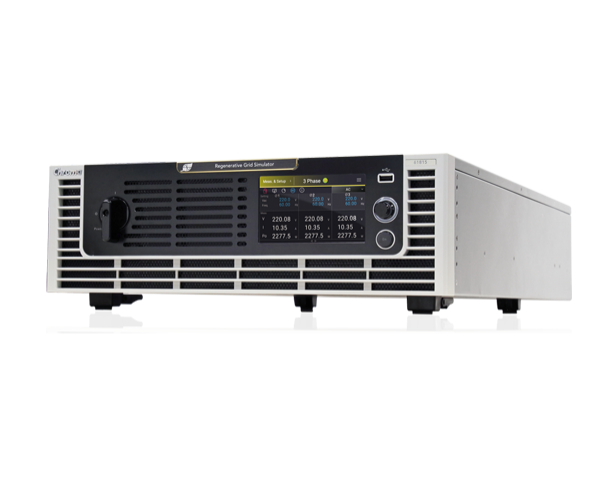

CHROMA 61809 ຕົວຈຳລອງຕາຂ່າຍໄຟຟ້າຟື້ນຟູ (9kVA)
AC Output Power
+ Selectable single-phase or three-phase output
+ Maximum power: 9 kVA
+ Per-phase power: 3 kVA
Voltage
+ Voltage range: 0–350 V (Phase-to-Neutral) / 0–606 V (Phase-to-Phase)
+ Setting accuracy: ±(0.1% + 0.2% of full scale)
+ Resolution: 0.1 V
Maximum Current (Single-Phase Mode)
+ RMS: 87 A
+ Peak: 261 A
Maximum Current (Per Phase in Three-Phase Mode)
+ RMS: 29 A
+ Peak: 87 A
Frequency
+ Frequency range: 30–100 Hz
+ Accuracy: 0.01%
DC Output (Single-Phase Mode)
+ Power: 9 kW
+ Voltage: 495 V
+ Maximum current: 65.25 A
DC Output (Per Phase in Three-Phase Mode)
+ Power: 3 kW
+ Voltage: 495 V
+ Maximum current: 21.75 A
Input Specifications
+ Operating voltage range
3-phase 200–220 V ±10% (Line-to-Line), 47–63 Hz (100% power)
3-phase 380–480 V ±10% (Line-to-Line), 47–63 Hz (100% power)
+ Input current
Maximum 39 A/phase (3-phase 200–240 V)
Maximum 21 A/phase (3-phase 380–480 V)
+ Power factor: 0.98
Measurement
+ Voltage
Measurement range: 0–350 V (Phase-to-Neutral)
Accuracy: ±(0.1% + 0.2% of full scale)
+ Current
Peak measurement range: 261 A
RMS accuracy: ±(0.4% + 0.3% of full scale)
Peak accuracy: ±(0.4% + 0.6% of full scale)
+ Power
Accuracy: ±(0.4% + 0.4% of full scale)
Parallel Operation: Up to 20 units
Series Operation: Up to 2 units
Touchscreen Display: 5-inch LCD
Standard Interfaces: USB, LAN
Optional Interfaces: GPIB, CAN
Dimensions (H × W × D): 132.8 × 428 × 700 mm
Weight: 50 kg
Standard Accessories: Main unit
