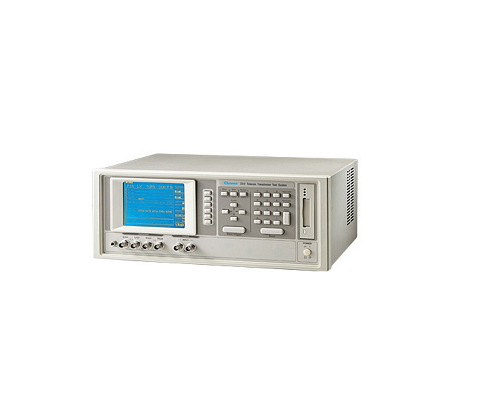

Chroma 3312 Telecom Transformer Test System

• ncludes most test items in telecommunication transformer inspection
• Programmable frequency : 20Hz~1MHz, 0.02% accuracy
• Basic accuracy : 0.1%
• 3 different output impedance modes, measurement results are compatible with other well-known LCR meters
• Enhanced Turn Ratio measurement accuracy for low permeability core
• ast Inductance/ Turn Ratio measurement speed up to 80 meas./sec
• Fast DCR measurement speed up to 50 meas./sec
• 1320 Bias Current Source directly control capability
• 320x240 dot-matrix LCD display
• Support versatile standard and custom-design test jigs
• Four-terminal test for accurate, stable DCR, inductance and turn ratio measurements
• Built-in comparator; 10 bin sorting with counter capability
• 4M SRAM memory card, for setup back-up between units
• Standard RS-232, Handler and Printer interface, option GPIB Interface for LCR function only
• 15 internal instrument setups for store/recall capability
