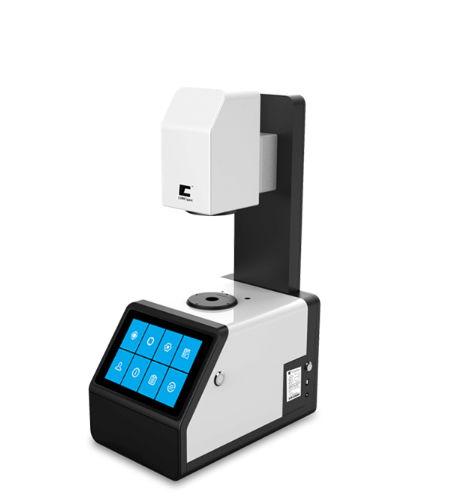

CHN SPEC THC-100 ເຄື່ອງວັດຄຸນຫຼຸດຄວາມມົດໃນສະຕຣັບມະສະພັດເຫຼືອງທີ່ເຫັນໄດ້ (D/0, 400–700 nm)
Optical path structure: D/0
Wavelength range: 400–700 nm
Wavelength interval: 10 nm
Measurement aperture: 21 mm, 7 mm
Measurement conditions:
Light source: CIE-A, CIE-C, CIE-D65, A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF,NBF,TL83,TL84;
Observer’s perspective: 2°, 10°
Measurement time:
Transmittance/haze: about 3s, other chromaticity indicators: 0.6s
Measurement parameters:
Haze (HAZE), total transmittance (T), spectral transmittance, CIE Lab, LCh, CIE Luv, XYZ, Yxy, Hunter Lab, Munsell MI, CMYK, whiteness WI (ASTM E313-00, ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby), yellowness YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), metamerism index Milm, APHA, Pt-Co (platinum cobalt index), Gardner (Gardner index), color difference (ΔEab, ΔECH, ΔEuv, ΔEcmc (2:1), ΔEcmc(1:1), ΔE94, ΔE*00)
Transmittance resolution: 0.01%
Transmittance accuracy: Better than ±1%
Transmittance repeatability: ≤0.03 (without preheating, the standard deviation of 30 times of measuring the standard haze sheet with a haze of about 30 at an interval of 3s)
Haze resolution: 0.01%
Haze accuracy: Better than ±1%
Haze repeatability: ≤0.03 (without preheating, the standard deviation of 30 times of measuring the standard haze sheet with a haze of about 30 at an interval of 3s)
Color difference repeatability:
Standard deviation ΔE*ab, within 0.03 (measurement conditions: no preheating correction required, average value of 30 measurements of white glass at 3s intervals)
Pt/Co colorimetric resolution: 0.01
Pt/Co colorimetric range: 0–500
Pt/Co colorimetric accuracy: ≤(5%H+1), H is the standard value
Power supply: DC12V/3A
Display: 7-inch touch screen, Android system
System language: 14 languages
Data interface: USB (Type-B)
Operating temperature range: 5–40°C, relative humidity 80% or lower (at 35°C), no condensation
Storage temperature range: -20 – +45°C, relative humidity 80% or lower (at 35°C), no condensation
Instrument dimensions: Lengthwidthheight: 310 mm * 215 mm * 540 mm
Instrument weight: 5300 g
