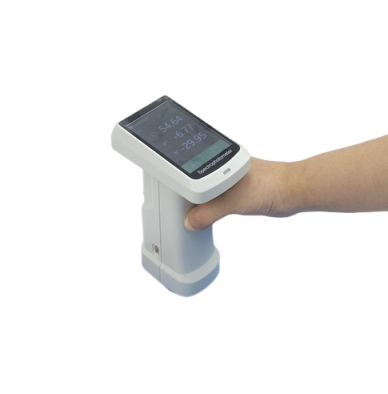

CHN SPEC DS-620 ອຸປະກອນວັດສີແບບສະເປັກແຕຣັນ (D/8,SCI+SCE, dE*ab≤0.03, Φ8mm/Φ11mm; Φ4mm/Φ6mm ; 1*3mm)

Measuring Structure: D/8,SCI+SCE

Measurement repeatability: dE*ab≤0.03

Inter-instrument Agreement: dE*ab≤0.3

Display accuracy: 0.01

Measuring/illumination aperture: Φ8mm/Φ11mm; Φ4mm/Φ6mm ; 1*3mm

Color Spaces and Indices: Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB color difference (ΔΕ*ab, Δ E*cmc, ΔΕ*94, ΔΕ*00), WI (ASTME313-00, ASTME313 -73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBerger Stensby) YI (ASTM D1925, ASTM E313-00, ASTM E313-73) blackness (My, dM), Color Fastness,Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell,Opacity,Color strength

Source condition: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1, LED-V2

Lightning source: LED+UV

Measurement observation method: Camera

Calibration: Auto calibration

Software support: Andriod,iOS,Windows, Wechat app

Accuracy quaranteed: Guaranteed first class measurement

Field of view: 2°, 10°

Integrating sphere diameter: 40mm

Follow standards: CIENo.15,GB/T3978,GB2893,GB/T18833,ISO7724-1,ASTME1164,DIN5033Teil7

Spectral method: Nano-integrated spectral devices

Sensor: Silicon photodiode array dual 16 groups

Wavelength interval: 10mm

Wavelength range: (user viewable reflectance at 31 wavelengths)

Reflectivity measurement range: 0-200%

Reflectance resolution: 0.01%

Measurement method: Single measurement, average measurement (2 to 99 measurements)

Measure time: about 1s

Interface: USB, Bluetooth

Screen: Full color screen, 3.5 inches

Battery capacity: 8000 continuous measurements on a single charge

Light source life: 10 years and 1 million cycles

Language: Simplified Chinese, English

Storage: Instrument: 10,000 data ; APP: mass storage
