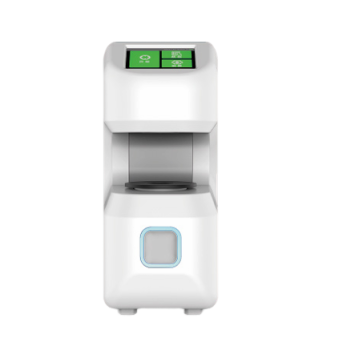

CHN SPEC DH-10 Portable Haze Meter (ASTM Standard, 21mm)

Light Source: CIE-A,CIE-C,CIE-D65

Standards: ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

Parameters: ASTM-haze/transmittance

Spectral Response: CIE Luminosity function Y/V (λ)

Geometry: 0/d

Tset Aperture Size: 21mm

Measurement Range: 0-100%

Resolution: 0.1%

Haze Repeatability: 0.1

Sample Size: Thickness ≤40mm

Display: 2.8 inches touch screen

Memory: Mass storage

Interface: USB

Power: DC 5V/2A

Working Temperature: 5-40°C (40–104°F)

Storage Temperature: -20-45°C (-4-113°F)

Size (LxWxH): 133mm x 99mm x 224mm(length X width X height)

Instrument Weight: 1.13KG

Standard Accessory: Free PC software (Haze QC)
