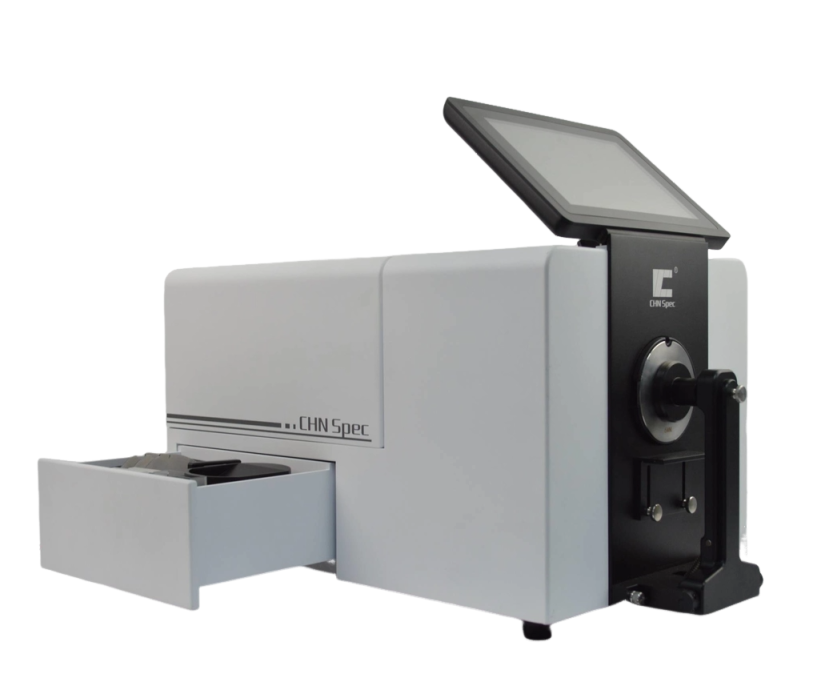

CHN SPEC CS-821N ເຄື່ອງວັດສີສະຕຣອຟໂຕເມຕີບແນບ-ທອບຄວາມຖືກຕ້ອງສູງ (d/8, ΔE*ab 0.015, 360nm-780nm)

Illumination/ Viewing System:  Reflection :d/8(diffuse lighting,8° direction reception), transmission :d/ 0 (diffuse lighting, vertical direction reception);

SCI(including specular reflected light)/SCE(not including specular reflected light) measurement at the same time;

Compliance with: CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,DIN5033 Teil7,JIS Z8722 Conditions C,ASTM E1164,ASTM-D1003-07

Sensor:  Dual-row high precision CMOS array sensor

Grating Method: Concave Grating

Sphere Diameter: 152mm

Wavelength Range: 360nm-780nm

Wavelength Pitch: 10nm

Half Band Width: 1.6nm

Reflectance Range Resolution: 0-200%,0.01%

Light Source: Pulse Xenon Lamp and LED

UV Measurement: Include UV, 400nm cut, 420nm cut, 460nm cut

Measurement Time: Single mode＜2s

Measurement/Illumination Aperture

Reflection: XLAV Φ25.4mm/Φ30mm, LAVΦ15mm/Φ18mm, MAVΦ8mm/Φ11mm, SAVΦ3mm/Φ6mm

Users can customize the caliber, automatic identification of caliber switching Transmission: Φ17mm/Φ25mm

Transmittance Sample Size: No limit on sample width and height, thickness ≤50mm

Long Term Repeatability: XLAV Chromaticity value: Standard deviation within ΔE*ab 0.015 (20℃±10℃ arbitrary temperature change, white tile is measured every hour within 24 hours）

Repeatability: XLAV Spectrum Reflectance/Transmittance: standard deviation within 0.1%;XLAV Chromaticity value: Standard deviation within ΔE*ab 0.015 * When a white tile is measured 30 x at 10-second intervals after white calibration

Inter-Instrument Agreement: XLAV ΔE*ab 0.2 (BCRA Series II, Average measurement of 12 tiles, at 23℃)

Observer: 2° and 10°

Illuminants: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84

Language: English, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish, Chinese (simple and traditional),

Display: Reflectance and Transmittance graph/value, color value, color difference values, pass/fail, color simulation, color assessment, haze, liquid chromaticity values, color tendency

Color Spaces: CIE LAB,CIE LUV,LCh,Hunter Lab,Yxy,XYZ,Musell,s-RGB,βxy

Other Indices:

        WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Stensby)

        YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00),Metamerism index milm, stain fastness,color fastness, ISO brightness, R457, A density, T density, E density, M Density, APHA/Pt-Co/Hazen, Gardner, Saybolt, ASTM color, Haze, Total Transmittance, Opacity, Color Strength

Color Difference: ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc, ΔE*94, ΔE*00, ΔE*ab(hunter),555 shade sort

Storage Memory: 8GB

Screen Size: 7 Inches Touch Screen

Operate System: Android

Power Adaptor: 12V/3A

Operate Temperature: 5-40℃(40-104F), relative humidity 80% (at 35℃) no condensation

Storage Temperature: -20-45℃(-4-113F), relative humidity 80% (at 35℃) no condensatio

Other Function: RS-232、USB、USB-B

Interface: 1. Camera to view measurement area;2. Support horizontal, vertical and downward measurement method (need optional accessories to support for downward measurement);3. Auto humidity and temperature compensation function.

Accessories: Power Adaptor, USB Cable, fixture for transmittance, U disk (PC software), Black Calibration Cavity, White and Green Calibration Tile, Reflectance Test Support,30mm,18mm,11mm and 6mm apertures,reflectance sample fixture, Glass Cell 40x10mm,reflectance fixture

Optional Accessories: Heating Fixture for Transmittance, Vertical Support and Pneumatic ram for downward measurement, Reflectance fixture for small size sample, Reflectance Glass Cell Support, Corrosion-Resistant Protective Plate (non-removable), Sample Holder for Fiber, Film Fixture, Transmittance Fixture for Small Aperture, Trolley Case, European Standard Plug, American Standard Plug
