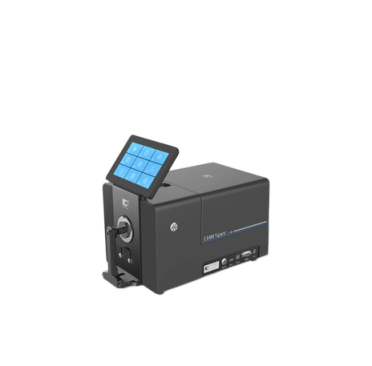

CHN SPEC CS-820P ເຄື່ອງວັດສີສະຕຣອຟໂຕເມຕີບແນບ-ທອບຄວາມຖືກຕ້ອງສູງ (d/8, ΔE*ab≤0.02, 360nm-780nm)

Illumination/ Viewing System:  Reflection :d/8(diffuse lighting,8° direction reception), transmission :d/ 0 (diffuse lighting, vertical direction reception);

SCI(including specular reflected light)/SCE(not including specular reflected light) measurement at the same time;

Compliance with: CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,DIN5033 Teil7,JIS Z8722 Conditions C,ASTM E1164,ASTM-D1003-07

Sensor: Silicon Photodiode Array

Grating Method: Concave Grating

Sphere Diameter: 152mm

Wavelength Range: 360nm-780nm

Wavelength Pitch: 10nm

Half wave Width: 1nm

Reflectance Range Resolution: 0-200%, 0.01%

Light Source: Pulse Xenon Lamp and LED

UV Measurement: Include UV, 400nm cut, 420nm cut, 460nm cut

Measurement Time: SCI/SCE < 2s;  SCI+SCE < 4s

Measurement/Illumination Aperture

Reflection: XLAV Φ25.4mm/Φ30mm, LAVΦ15mm/Φ18mm, MAVΦ8mm/Φ11mm, SAVΦ3mm/Φ6mm

Users can customize the caliber, automatic identification of caliber switching Transmission: Φ17mm/Φ25mm

Transmittance Sample Size: No limit on sample width and height, thickness ≤50mm

Long Term Repeatability: /

Repeatability: XLAV Spectrum Reflectance/Transmittance: standard deviation within 0.1%;XLAV Chromaticity value: Standard deviation within ΔE*ab 0.02* When a white tile is measured 30 x at 5-second intervals after white calibration

Inter-Instrument Agreement: XLAV ΔE*ab 0.25 (BCRA Series II, Average measurement of 12 tiles, at 23℃)

Observer: 2° and 10°

Illuminants: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84

Language: Simplified Chinese, Spanish, Spanish, Spanish, Portuguese, Portuguese

Display: Reflectance and Transmittance graph/value, color value, color difference values, pass/fail, color simulation, color assessment, haze, liquidchromaticity values, color tendency

Color Spaces: L*a*b,L*C*h,Hunter Lab,Yxy,XYZ

Other Indices:

WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube,Berger Stensby),YI(ASTMD1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00),Isochromatic index milm, color fastness,color fastness, ISO brightness, R457, a density, t density, e density, m density,APHA /Hazen / Pt Co, Gardner index, Saybolt index, ASTM Color, haze,total transmittance, hiding power, force, strength

Color Difference: ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc, ΔE*94, ΔE*00, ΔE*ab(hunter),555 hue classification

Storage Memory: 8GB

Screen Size: 7 Inches Touch Screen

Operate System: Android

Power Adaptor: DC regulated power supply

Operate Temperature: 5-40℃(40-104F), relative humidity 80% (at 35℃) no condensation

Storage Temperature: -20-45℃(-4-113F), relative humidity 80% (at 35℃) no condensation

Accessories: Power adapter, data cable, transmission fixture, software USB flash disk, black cavity, white board,green board, 0% calibration shading cover (820n attached), 30mm diameter board, 18mm diameter board, 11mm diameter board, 6mm diameter board, support table, cuvette, damping handle

Optional Accessories:

Heating transmission fixture (including control circuit), vertical support, pneumatic ejector rod(including control circuit), small sample clamping accessories, pull rod box, European standard plug, American standard plug, reflecting cuvette support corrosion protection plate (non removable), fiber test box, film fixture and micro transmission fixture

Interface: RS-232,USB,USB-B

Other

1. Camera viewfinder positioning;

2. The instrument can measure laterally, upward and downward (using accessories);

3. Automatic temperature and humidity compensation function
