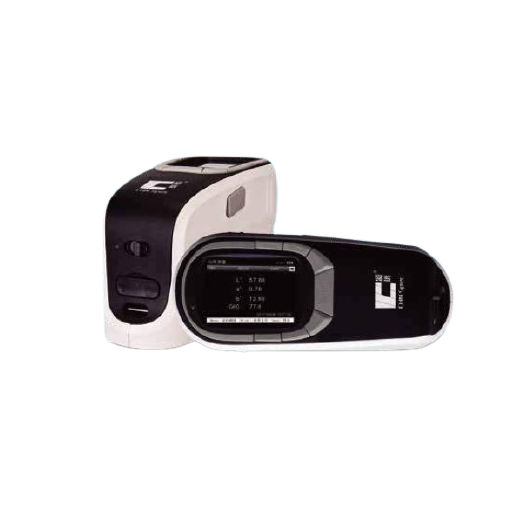

CHN SPEC CS-800C 45/0 Spectrophotometer

Function: color

Geometry: 45/0 (45 ring-shaped illumination,0 degree viewing)

Aperture: 11mm

Wavelength: 400-700nm

Wavelength Interval: 10nm

Sensor: high sensitivity silicon photodiode

Light Source: LED

Repeatability:

Reflectance: standard deviation within 0.08%

Chromaticity value: ΔE*ab 0.03 (when a white plate is measured 30 times at 5 second intervals after white calibration),Maximum 0.05

Inter Instrument Agreement: 0.2 ΔE*ab (BCRA II color tiles, average test value of 12 tiles)

Language: Chinese and English

Observer: 2°/ 10°

llluminants: A,C,D50,D55,D65,D75,F1-F12,CWF,U30,DLF,NBF,TL83,TL84,U35

Color Spaces: CIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy, Reflectance,Hunter-lab.Munsell Ml,CMYK

Indices: Wl(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC ,Hunter,Taube Berger Stensby),Yl(ASTM D1925,ASTM E313-00,ASTM

E313-73),Tint(ASTM E313,CIE,Ganz),Metamerism index Milm, Stick color fastness,Color fastness.ISO brightness,A density, T density, M density, Edensity

Color Difference: ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*OO,ΔEab(Hunter),555 shade sort

Gloss Test Angle:

Test Area:

Test RangeL:

Repeatability:

Reproducibility:

Light Source Life Time: 10 years 3million test

Screen: 5.0 inch color screen

Data Storage: 20000 samples

Interface: USB

Power: Rechargeable Lithium Battery, 20000 continuous tests, 7.4V/600mAh

Working Temperature: 0-45°( relative humidity 80% or less (at 35°C) with no condensation

Size: 350*300*200mm(L*W*H)

Weight: about 4.5g (without battery)

Standard accessories: Adapter, Lithium Battery, operate manual, color QC software, driver software,USB cable, Calibration tile (Black and white) Gloss calibration tile
