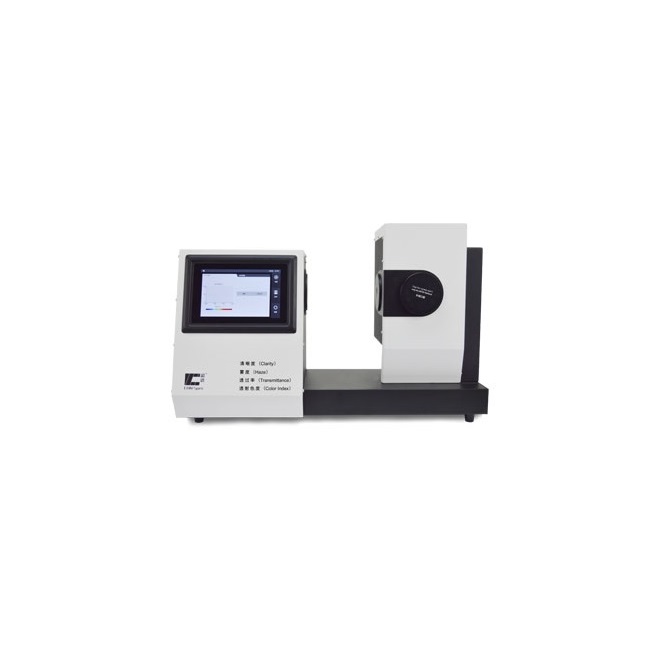

CHN SPEC CS-700 ເຄື່ອງວັດແທກສີ ແລະອາຍພິດ
Light source:
Haze / Transmittance: CIE-A、CIE-C、CIE-D65
Chromaticity index: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF, U30, DLF, NBF, TL83, TL84
Standards: ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c standard
Parameters: Haze (HAZE),Transmittance (T),transmittance curve,清） CIE Lab, LCh, CIE Luv, XYZ, Yxy, , Hunter Lab Munsell MI,CMYK, Whiteness WI(ASTM E313-00,ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby), Yellow Index YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313-00), Heterochromatic index Milm, APHA, Pt-Co(Index of platinum cobalt), Gardner, Color difference (ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00)
Measuring Range: 0-100% (Haze, transmittance)
Spectral Response: CIE The spectrum functionY/V(λ)
Wavelength Range: 400-700nm
Wavelength Interval: 10nm
Geometry: 0/d
Illumination Area and Aperture: 16.5mm/21mm
Resolution: 0.01 unit
Repeatability:
haze＜10%, repeatability≤0.05;
haze≥10%, repeatability≤0.1%;
Transmittance≤0.1%
Sample Size: thickness≤145mm
Display: 7 Inches Touch Screen
Data Storage: 20,000 values
Interface: USB
Power: 110V / 220V / 240V
Working Temperature: 0~45℃, Relative humidity 80% or below (at 35 ° C), no condensation
Storage Temperature: -25 ℃ ~ 55 ℃, relative humidity 80% or below (at 35 ℃), no condensation
Instrument Size: 598mmX247mmX366mm (length X width X height)
Standard: PC management software (Color QC)
Optional: Measuring Fixture, Haze Standards, Transmittance Standards, 5mm / 7mm / 10mm Apertures, 40 * 10 Glass Cell
