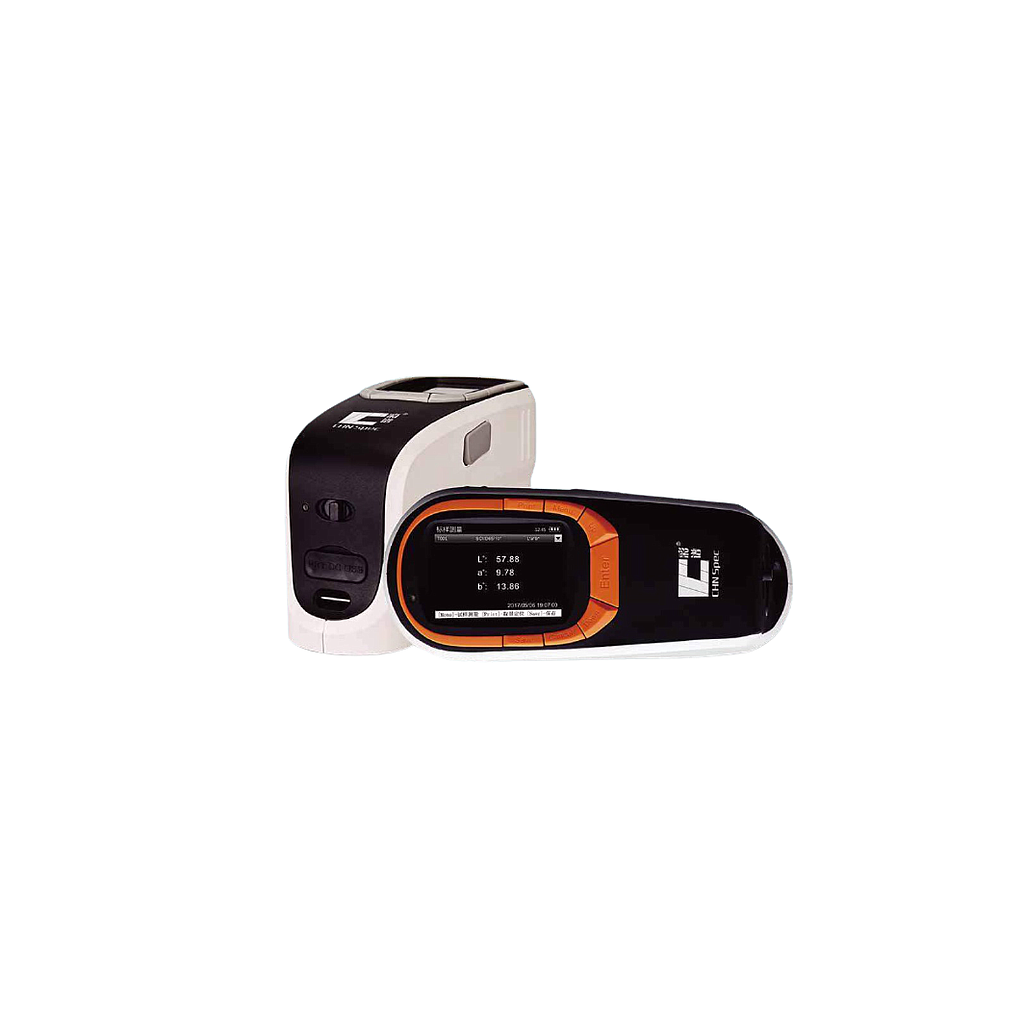

CHN SPEC CS-650 ເຄື່ອງວັດແທກສະເປກໂທຣໂຟໂຕແມັດ
Illumination: d/8(Diffused lighting, 8 degrees observe angle),SCI(specular component included)/SCE(specular component excluded)simultaneous measurement. (conform to CIE No.15, ISO 7724/1, ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards)
Size of integrating sphere: Φ40mm,Avian diffused reflection surface coating
Illumination Light source: Pulse Xenon Lamp
Sensor: dual light path sensor array
Wavelength range: 360-740nm
Wavelength interval: 10nm
Half spectral width: 5nm
Reflectivity range: 0-200%
Reflectivity resolution: 0.01%
Observation angle: 2°/10°
Measurement light source: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF, U30,CWF
Data being displayed: SPD distribution/data，sample's color values，color difference values/graph，pass/fail results，color error tendency，color simulation，display measurement area，history data color simulation，manual input standard sample，generate measurement report
Measurement time interval: 1 seconds
Measurement time: 2 second
Color space: CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance Hunterlab,Munsell MI,CMYK,RGB,HSB
Color difference formulas: ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 ΔEab(Hunter),555 shade sort
Other colorimetric indices: WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz)
Metamerism index Milm, Stick color fastness, Color fastness
ISO luminance, 8 gloss, A density, T density, M density, E density
Repeatability:
light splitting reflectivity：standard deviation within 0.08%
color values:ΔE*ab<=0.02,
Maximum:0.04
Battery capacity: rechargeable, 10000 continuous tests, 7.4V/6000mAh
Interface: USB
Data storage: 20000 test results
Light source longevity: 5 years, 1.5 million tests
Inter-instrument agreement: ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Size: 181*73*112mm(L*W*H)
Weight: about 550g(does not include battery's weight)
Display: True color screen that includes all colors
Work temperature range: 0~45℃, relative humidity 80% or below( at 35°C ),no condensation
Storage temperature range: -25℃ to 55℃，relative humidity 80% or below(at 35°C ),no condensation
Color matching system: match
UV light source: With UV
Standard accessories: DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts, measurement and test report
Optional accessories: powder molding device, micro printer
