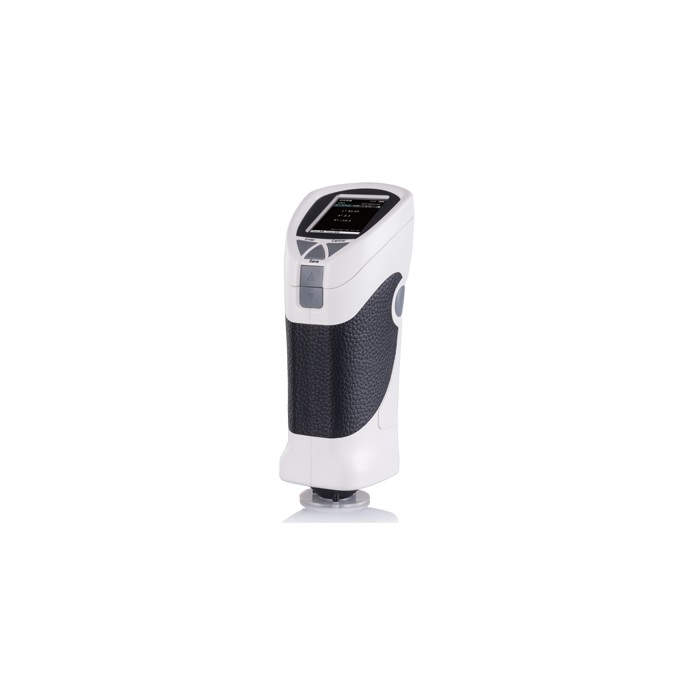

CHN SPEC CS-288 Spectro Colorimeter
Illumination: di/8(Diffused Illumination, 8 degree viewing)
(conform to CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standard）
Size of integrating sphere: Φ40mm, Avian diffused reflection surface coating
Illumination Light source: CLED
Sensor: array sensor
Wavelength: 400-700nm
Spectrum Resolution: 10nm
Measurement Time: 2s
Measurement Aperture: 11mm,optional 4mm,6mm,15mm
Repeatability: Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles: 2° and 10°
Light Source: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF，U35
Display:
Chromaticity value（L*a*b，L*C*h）, delta E value, pass/fail, color tendency, average, generate test report, spectrum reflectance figure /data
With camera to see the measurement area, spectrum reflectance figure /data, manual input target data
Color Difference Formula: ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00
Color Space: CIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy,Reflectance
Other:
WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger，Ganz，Stensby)
YI(ASTM D1925，ASTM E313-00,ASTM E313-73) metameric index ,staining fastness , Color fastness
Data Storage: 20000 samples
Light Source Lifetime: 5 years, 1.5 million times
Other: camera view, input color swatches, mobile phone APP
Screen: Panchromatic True Color Screen
Language: Chinese and English
Interface: USB2.0,Bluetooth
Operating Temperatur: 5~45℃, relative humidity 80% or below( at 35°C ),no condensation
Storage temperature range: -25℃ to 55℃，relative humidity 80% or below(at 35°C ),no condensation
Power: Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V
Size: 77×86×210mm
Weight: About 550g
Color Matching System: Not matched
UV Light Source: without
Standard Accessories: adapter, operating manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, portable bag, electronic color charts
Optional: Micro Printer
