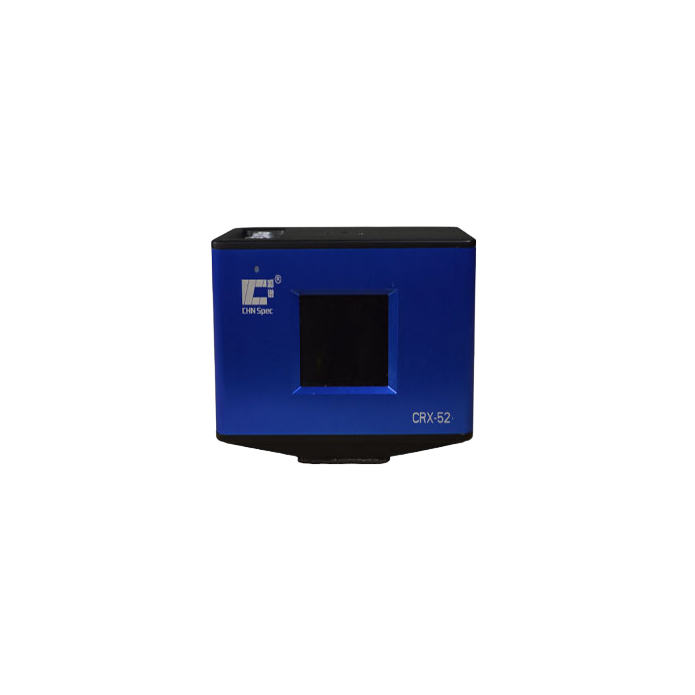

CHN SPEC CRX-52 ເຊັນເຊີສີ

Measurement Condition: 45°illumination 15°、45°、110°observation

Light Source: CLEDs

Sensor: Silicon Photodiode

Non-Contact Measurement Distance: Contact Measurement

Calibration Method: Built-in Calibration

Wavelength Range: 400nm-700nm

Half Band Width: 5nm

Wavelength Pitch: 10nm

Measuring Caliber: φ7mm

Measuring Time: 6s

Intervals: 1s

Reflectance Range: R（0%-200%）

Resolution: 0.0001

Measurement Parameter: CIE-L*a*b,L*C*h,Scintillation index, Surface particle grade

Observer: 10°/2°

Illuminants: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35

Color Difference Formula: ΔE*ab,ΔEc,ΔEp,

Repeatability (Standard White tile): Chromaticity value: ΔE*ab standard deviation ≤ 0.03, maximum value ≤ 0.05. (After calibration, the whiteboard is continuously tested 30 times, and the measurement interval is 1 s)

Inter-Instrument Agreement: Within ΔE*ab 0.5 (average of BCRA Series II 12 swatches)

Light Source Life: Lifetime Warranty

Working Temperature: 0°C-45°C, Relative humidity 80% or lower (at 35°C), no condensation

Storage Temperature: -25°C-55°C, Relative humidity 80% or lower (at 35°C), no condensation

Communication: Industrial USB, other interfaces can be customized

Power: +12DCV

Weight: 1.7kg

Size: L180mm*W107mm*H118mm
