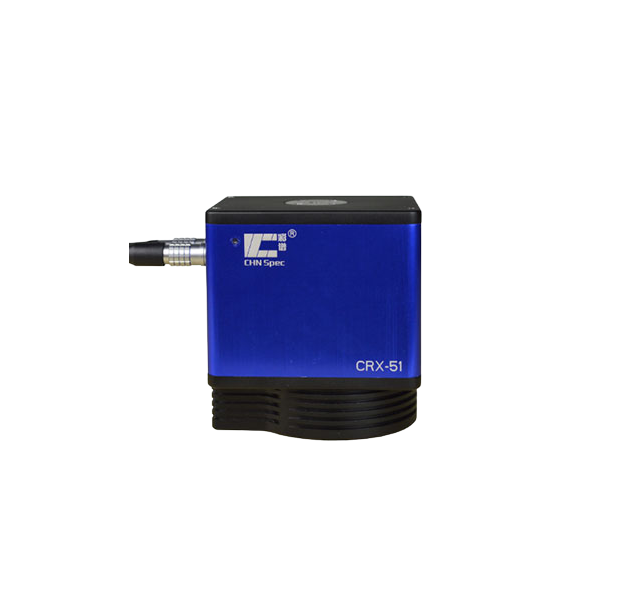

CHN SPEC CRX-51 ເຊັນເຊີສີ

Measurement Condition: d/8 (scattered light source, 8 degree observation angle), SCI (including specular reflection component).

Integrating Sphere: Φ40mm，Avian-D Full diffuse reflective surface coating

Light Source: CLEDs

Sensor: Dual Optical Path Array Sensor

Measurement Distance: 0.5mm

Internal Self-calibration: Built-in black and white calibration

Protection Level: IP67

Wavelength Range: 400-700nm

Wavelength Pitch: 10nm

Half Band Width: 5nm

Measuring Range: 0-200%

Resolution: 0.01%

Measuring Caliber: φ10mm（φ4mm optional）

Measuring Light Source: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35

Display: Spectrogram/data, sample chromaticity value, color difference value, pass/fail result, color deviation, display measurement area, historical data color simulation, manual input of standard sample, generation of test report

Intervals: 1s

Measuring Time: Minimum 20ms

Measurement Parameter: CIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy,Reflectivity

Color Difference Formula: ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00

Other indicators: WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313,CIE,Ganz) metamerism index Milm, color fastness, color fastness

Repeatability: Chromaticity value: ΔE*ab standard deviation within 0.03, maximum value 0.05 (After calibration, 30 times standard deviation of whiteboard is measured at intervals of 5 s)

Inter-instrument Agreement: Within ΔE*ab 0.2 (average of BCRA Series II 12 swatches)

Light Source Life: Lifetime warranty

Operating Environment: 0°C-45°C, relative humidity 80% or lower (at 35°C), no condensation

Storage Environment: -25°C-55°C, relative humidity 80% or lower (at 35°C), no condensation

Communication: Industrial USB, other interfaces can be customized

Power: +12DCV

Weight: 1.3kg

Size: 100*112*120mm(L*W*H)
