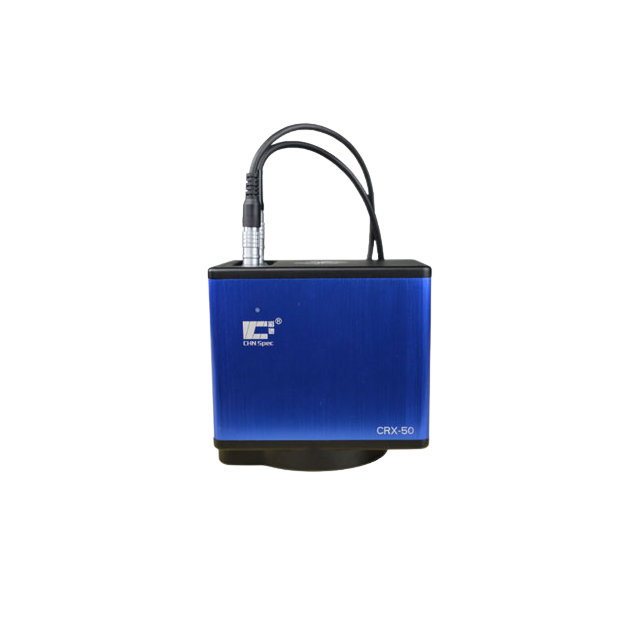

CHN SPEC CRX-50 ເຊັນເຊີສີ

Geometry: 45/0 (45 right-shaped illumination, 0 degree viewing)

Light Source: CLEDs

Sensor: Dual Optical Path Array Sensor

Non-contact Measurement Distance: 7.5mm ± 3mm (repeat-ability dE <0.1 for distance fluctuations)

Calibration Method: Built-in Calibration Tile

Wavelength Range: 400nm-700nm

Half Band Width: 5nm

Wavelength interval: 10nm

Non-contact Measurement Distance: 7.5mm ± 3mm (repetitive dE <0.1 for distance fluctuations)

Measuring Aperture: φ7mm

Measure Time: Minimum 20ms

Measurement Interval: 1s

Reflectance Range: R（0%-200%）

Resolution: 0.0001

Measurement parameter: CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, reflectivity WI (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby) , YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313, CIE, Ganz), metamerism index Milm, color fastness, color fastness

Observer: 10°/2°

Illuminants: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35

Color Difference Formula: ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00

Repeatability (standard white tile): Chromaticity value: ΔE*ab standard deviation ≤ 0.03, maximum value ≤ 0.05.

(After calibration, the white calibration tile is measured 30 times at 1s interval)

Inter-instrument Agreement: Within ΔE*ab 0.2 (average measurement of BCRA Series II 12 tiles)

Light Source Life: Lifetime Warranty

Working Temperature: 0°C-45°C, relative humidity 80% or lower (at 35°C), no condensation

Storage Temperature: -25°C-55°C, relative humidity 80% or lower (at 35°C), no condensation

Interface: Industrial USB (others can be customized)

Power Supply: +12DCV

Weight: 2.3kg

Size: 154mm*113mm*145mm (L x W x H)
