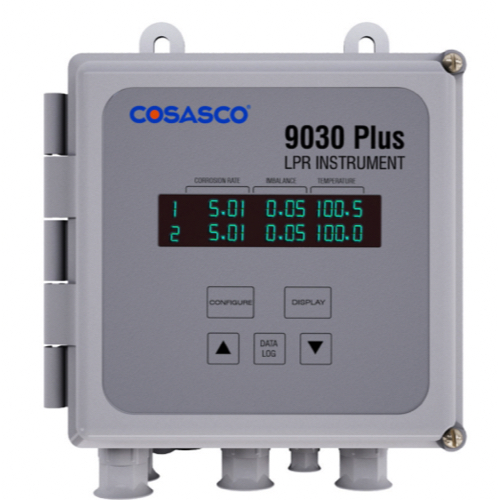

Single Channel: One LPR or LPR Temperature probe providing corrosion rate, imbalance, and temperature from dual sensor LPR temperature probes. Data logging using CORRDATA Plus Software directly from a PC or Laptop.
Ranges:
Corrosion Rate: 0.01 MPY to 1,000 MPY (0.25 µmpy to 25,000 µmpy)
Imbalance: 0.01 to 1,000 pitting units
Temperature: 0°C to +260°C
Data Storage: LPR: 1023, LPR Temperature: 511
Operating Range: See graph
Probe Compatibility: Any two‐ or three‐electrode LPR probes
Corrosion Measurement Cycle: Manual program range: 3 to 30 minutes or automatic cycle
Alloy Multiplier Range: 0.25 to 3.00
Analog Outputs: Six isolated outputs of 4‐20 mA (600 ohm maximum resistance). Isolation from probe and ground but not between each output. Three isolated outputs only if single channel.
Set Point Relay Contact Rating: 1 Amp @ 230 VAC, resistive load, SPDT
Power Requirements: 230 VAC 50/60 Hz, 15 watts
Instrument Operating Temperature: 32°F ‐ 122°F (0°C ‐ 50°C)
Enclosure: NEMA 4X Weatherproof – non‐corrosive
Weight: 6 lbs (2.7 kg)
Compliant: EMC Directive EM
