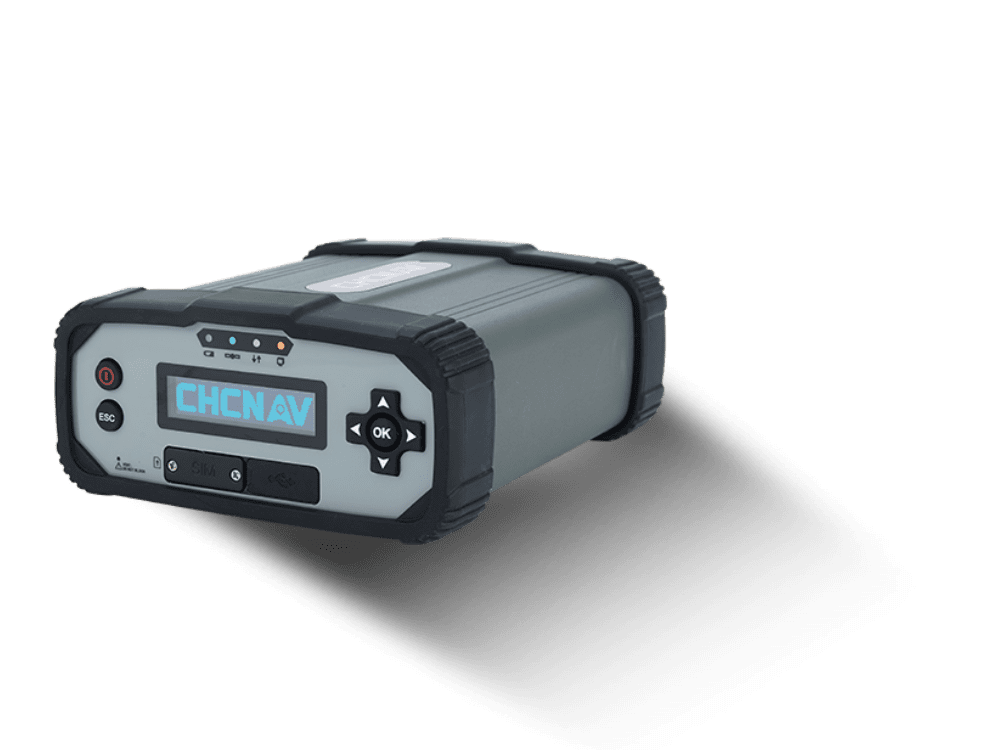

CHCNAV P5 ສະຖານີອ້າງອີງ Geodetic GNSS (1408CH)
GNSS characteristics
Channels: 1408
BDS: B11, B2, B31, B1C, B2a, B2b
GPS: L1, L2
GLONASS: G1, G2
Galileo: E1, E5a, E5b, E6
QZSS: L1C/A, L1C, L2C, L5
SBAS: L1C/A
NavIC: L1C/A, L1C, L2C, L5
SBAS: L5
L-Band
GNSS accuracies
Real time kinematic (RTK):
Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS
Initialization time: < 8 s
Initialization reliability: > 99.9%
Post-processing static
Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS
Post-processing static (long observation)
Horizontal: 3 mm + 0.1 ppm RMS
Vertical: 3.5 mm + 0.4 ppm RMS
Hardware:
Size (L × W × H): 200 mm × 150 mm × 69 mm(7.9 in x 5.9 in x 2.7 in)
Weight: 2.15 kg (75.8 oz) with battery
Environment: Operating: -40°C to +65 °C; (-40°F to +149°F); Storage: -45°C to +80°C; (-49°F to +176°F)
Humidity: 100%
Ingress protection: IP67 waterproof and dustproof, protected from temporary immersion to depth of 1 m
Shock: IEC68-2-27
Electrical
Power consumption: 5 W (depending on user settings)
Internal battery capacity: 17,000 mAh, 7.4 V
Operating time on internal battery (3): Up to 20 h (depending receiver configuration)
External power: 9 V DC to 36 V DC
Certifications and Calibrations: FCC Part 15 (class B Device), FCC Part 22, 24, 90; CE Mark; Method 514.7, IGS
Communications and Data storage
Ports:
1 x 10-pin LEMO port (external power, RS-232)
1 x USB 2.0 port (data download, firmware update)
1 x LAN port
HTTP / HTTPs, TCP/IP, UDP, FTP, NTRIP Caster, NTRIP Server, NTRIP Client
– Simultaneously transmits multiple data stream
– Support proxy server and route table
1 x DB9 port
1 x GNSS antenna port
1 x SIM card slot
Protocols:
Correction formats: RTCM2.x, RTCM 3.x
Observables: HCN, HRC, RINEX2.x,
RINEX3.x
Position/Status I/O: NMEA 0183 output
Met sensor
Internal data logging and position: Output frequency up to 50 Hz (optional) Storage capacity 32 GB
Bluetooth : V 4.1
Wi-Fi: 802.11 b/g/n, access point mode
Network modem (Internal 4G modem):
Integrated 4G modem
LTE (FDD): B1, B2, B3, B4, B5, B7, B8, B20
DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8
EDGE/GPRS/GSM
850/900/1800/1900 MHz
