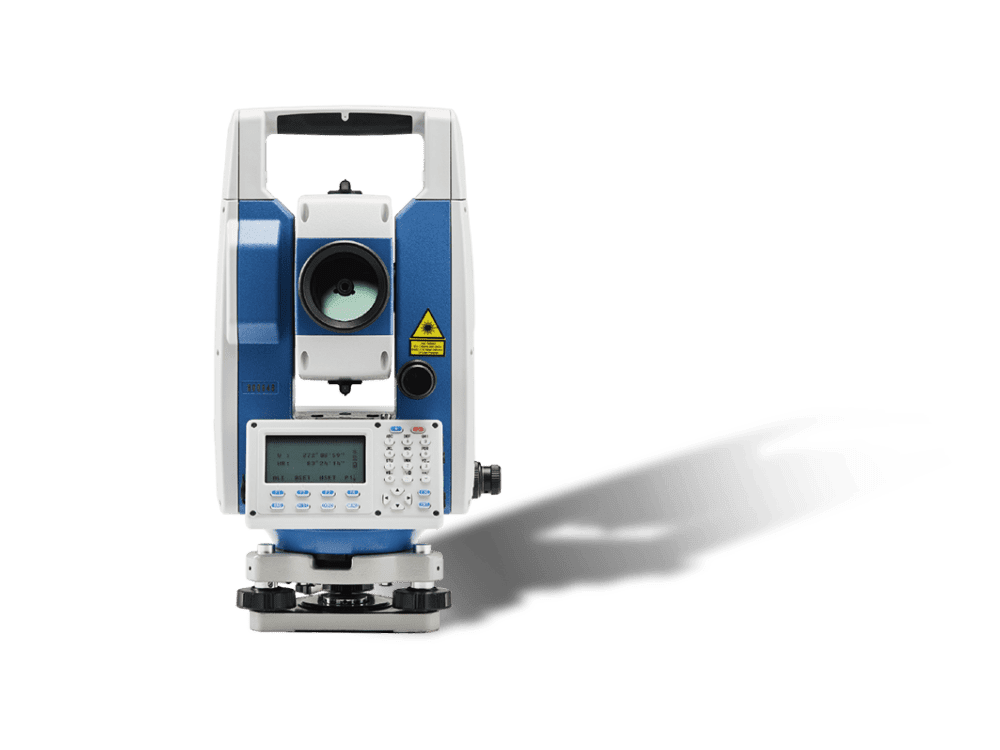

CHCNAV CTS-112R4 ສະຖານີທັງໝົດ (0.650~0.690μm)
Distance measurement
Laser output: Prism: Class 2; Reflective sheet: Class 2; Non-prism: Class 3R
Distance measurement: Prism:5000 m; Reflective sheet: 1000 m; Non-prism: 1000 m
Accuracy: Prism:2 mm + 2 ppm; Reflective sheet: 3 mm + 2 ppm; Non-prism: 3 mm + 2 ppm
Measuring time: Prism fine: 0.3 s; Prism tracking: 0.1 s
Laser type: Red visible laser
Carrier: 0.650~0.690μm
EDM type: Coaxial
Resolution: 0.1 mm
Angle measurement
Diameter: 79 mm
Minimum readout: 0.1”/1”/5”/10” optional
Accuracy: 2”
Detection method: Horizontal:Dual/ Vertical: Dual
Telescope
Image: Erect
Tube length: 154 mm
Objective lens effective: For telescoping: 45 mm
aperture: For measuring: 50 mm
Magnification: 30
Field of view: 1°30’
Minimum focus distance: 1.4m
Resolving power: 3"
Reticle illumination: 4 brightness levels
Auto compensator
System: Dual axis photoelectric detection
Working range: ± 3′
Accuracy: 1′′
Laser plummet
Accuracy: 1.5 mm at 1.5 m instrument height
Laser spot size: 2.5 mm
Display:
Type: LCD.6 lines digital screen
Keyboard: Alphanumeric. 28 keys with backlight
Control panel: Double
Screen size: 2.8 inch
Battery
Battery type: Rechargeable lithium battery
Battery voltage: DC7.4 V 3.100 mAh
Operating time: Continuousdistance/angle: 8 hours; Continuousangle-only: 16 hours
Charging time: About 3 hours
Environment
Operating temperature: -20°C to +50°C (-4°F to122°F)
Dust and water proof: IP55
Size and weight: 160 x 150 x 330 mm (6.3 x 5.9 x 13.0 in)/ 5.2 kg
