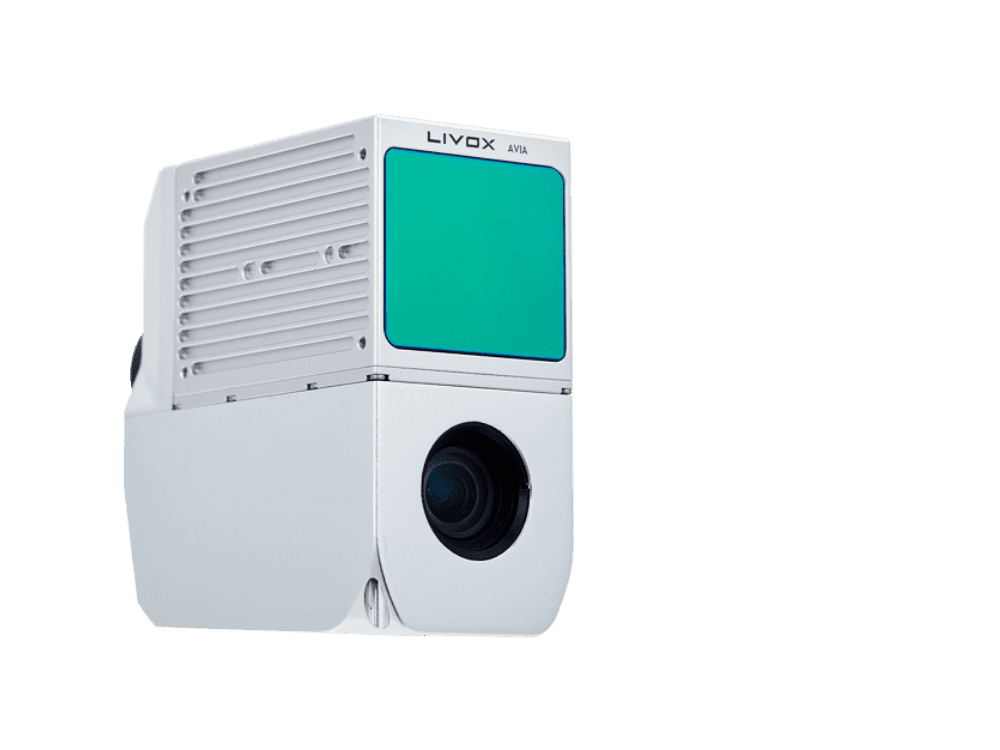

CHCNAV AlphaAir 450 UAV LiDAR Solutions (DC 12 ~ 14 V, 32W)

General system performance

Absolute accuracy: <10 cm Hz ; <5 cm V

Accuracy conditions: Without control points, @50 m flight altitude AGL

Mounting: Skyport for DJI M300; External power source with the dedicated  port for other UAVs  (CHCNAV Alphaport interface)

Weight of instrument (1): 0.95 kg

Dimensions of instrument: 12.8 × 12.8 × 6.75 cm

Communications: 1× port for GNSS antenna Skyport interface; 1× USB Type-C, copy speed up to 160 Mb/s

Data storage : 256GB

Point density on UAV setup  5 m/s (18 km/h) speed: 570 pts/sqm @ 50 m AGL; 280 pts/sqm @ 100 m AGL

Covered area: 2 km2 area by 30 mins UAV flight

Operation: One-touch acquisition or remote control  via DJI M300 Smart controller enterprise

Transport box: 1× protected soft bag with custom precut  foam

Laser scanner

Laser class: 1 (in accordance with IEC 60825-1:2014)

Max.range, reflectivity  > 80% (2): 450 m

Max.range, reflectivity  > 10% (2): 190m

Max. returns supported: Up to 3

Accuracy (3): 20 mm @ 20 m; 30 mm @100 m

Precision (4): 15 mm

Field of view: 70.4° (Horizontal) × 4.5° (Vertical)

Scan rate: 240 000 pts/sec (first or strongest return); 480 000 pts/sec (dual return); 720 000 pts/sec (triple return)

Positioning and orientation system

GNSS system: Dual-frequency GNSS GPS, GLONASS, BeiDou, Galileo, sampling frequency 5 Hz

IMU update rate: 500 Hz

Position accuracy NO GNSS outage : 0.010 m RMS horizontal,  0.020 m RMS vertical,  0.01 degrees RMS  pitch/roll, 0.04 degrees RMS heading

Imaging system

Camera type: Built-in calibrated Camera

Resolution: 6252 × 4168

Effective pixels: 26 MP, 30 fps

Min. trigger interval : 0.6 sec

Environmental

Operating temperature: -20°C ~ +50°C

Storage temperature: -20°C ~ +65°C

IP rating: IP64

Humidity (operating): 80%, non-condensing

Electrical

Input voltage:  DC 12 ~ 14 V

Power consumption: 32 W, min. 2A

Power source: Depending on UAV battery, or by Skyport  from DJI M300
