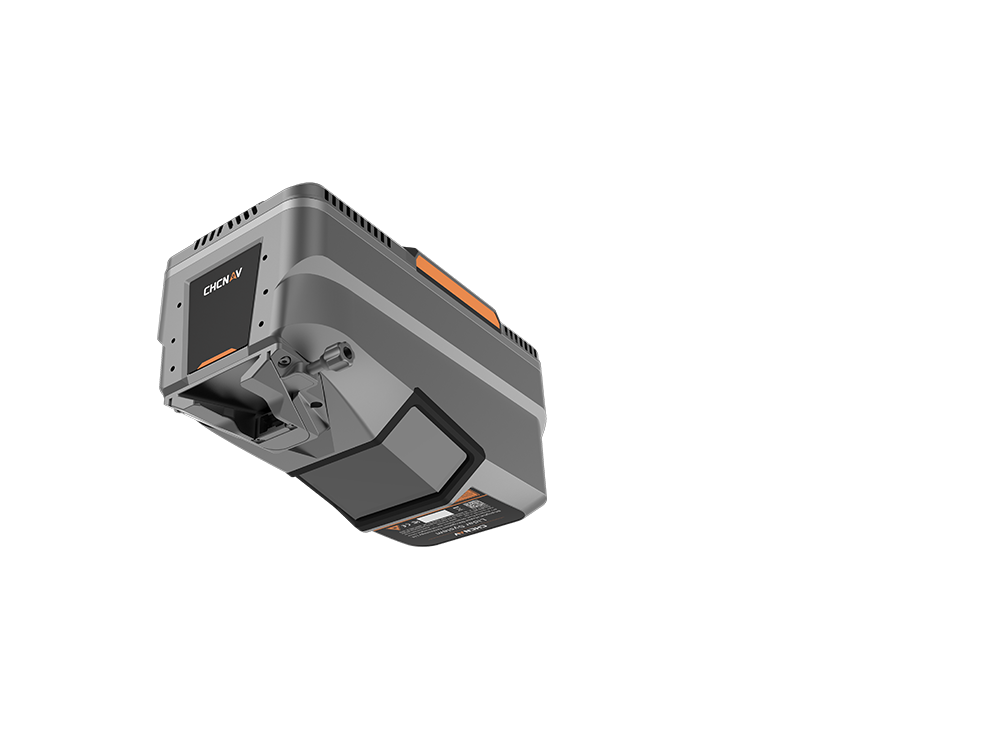

CHCNAV AA15 Premium Airborne Solution LiDAR (DC 24 V (15 ~ 27 V), 60W)
General system performance
Absolute Hz accuracy: 2 cm ~ 5 cm RMS
Absolute V accuracy: 2 cm ~ 5 cm RMS
Mounting: Quickly install & release design, easily switch between various UAV platforms, RPAS, small anned aircraft and helicopters
Weight of instrument: 2.5kg
Dimensions of instrument: 247 mm × 126 mm × 156 mm
Data storage: 512GB (Optional for 1 T)
Coping speed: 80 Mb/s
Imaging system: External camera C5/C30 (Optional for third-party oblique or orthho cameras)
Positioning and orientation system
GNSS system: Multiple GPS, GLONASS, Galileo BeiDou, SBAS and QZSS constellation, L-Band
IMU update rate: 600 Hz
Attitude accuracy after post-processing: 0.005° RMS pitch/roll ; 0.010° RMS heading
Position accuracy after post-processing: 0.010 m RMS horizontal; 0.020 m RMS vertical
Laser scanner
Laser product classification: Class 3R Laser Product according to IEC 60825-1:2014
Laser pulse repetition rate PRR: 100 kHz~2M Hz
Laser divergence angle: 0.032°
Minimum range: 5m
Accuracy: 15 mm (1σ,@ 150 m)
Precision: 5 mm (1σ,@ 150 m)
Multi-Period capability: Up to 7 zones
Field of view: 75°
Scanning mechanism: Rotating mirror
Max. measurement rate : 2,000,000 meas./sec.
Scan speed (selectable): 50 ~ 600 scans/sec
Imaging system
Resolution: 45 MP
Focal length: 21 mm/35 mm
Sensor size: 36 mm x 24 mm (8184 x 5460)
Pixel size: 4.4 μm
Min photoing interval: 1s
FOV: 81.2*59.5 / 53.4*37.8
Environmental
Operating temperature: -20°C to +50°C
Storage temperature: -20°C to +60°C
IP rating: IP64
Humidity (operating): 80%, non-condensing
Electrical
Input voltage: DC 24 V (15 ~ 27 V)
Power consumption: 60W
