Chauvin Arnoux C.A 5275 Digital Multimeter (60 mV / 600 mV / 6 V / 60 V / 600 V / 1,000 V)

Name: Chauvin Arnoux C.A 5275 Digital Multimeter (60 mV / 600 mV / 6 V / 60 V / 600 V / 1,000 V)
Brand: Chauvin Arnoux
Availability: OutOfStock

ຜູ້ຜະລິດChauvin Arnoux(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelC.A 5275

P/NP01196775

ຕົ້ນກຳເນີດFrance

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

- Display: 2 x 6,000 counts with backlighting
- Bargraph: 61 + 2 elements, dual mode (full scale/central zero)
- Acquisition: TRMS AC / DC / AC+DC
- Measurement range: 5 measurements / second
- Autorange / Deactivatable : Yes / yes
- Automatic AC /DC detection: No
- Vdc:
+ Ranges: 60 mV / 600 mV / 6 V / 60 V / 600 V / 1,000 V
+ Typical accuracy: 0.09 % + 2 cts
+ Resolution: 0.01 mV to 1 V
- Vac:
+ Ranges: 60 mV / 600 mV / 6V / 60 V / 600 V / 1,000 V
+ Resolution: 0.01 mV to 1 V
+ Bandwidth: 40 Hz to 10 kHz
- VLowAC (low impedance + low-pass filter)
+ Ranges: 600 mV / 6V / 60V / 600V / 1,000 V
+ Resolution: 0.1 mV to 1 V
- Vac+dc:
+ Ranges: 60 mV / 600 mV / 6V / 60 V / 600 V / 1,000 V
+ Resolution: 0.01 mV to 1 V
- Adc
+ Ranges: 6,000 μA / 60mA / 600 mA / 6 A / 10 A (20 A / 30 s
+ Resolution: 1 μA to 0.01 A. Ionization current: 0.2 μA to 20.0 μA
- Aac:
+ Ranges: 6,000 μA / 60 mA / 600 mA / 6 A / 10 A (20 A / 30 s)
+ Resolution: 1 μA to 0.01 A
- A ac+dc:
+ Ranges: 6,000 μA / 60 mA / 600 mA / 6 A / 10 A (20 A / 30 s)
+ Resolution: 1 μA to 0.01 A
- Resistance:
+ Ranges: 600 Ω/ 6,000 Ω/ 60 kΩ/ 600 kΩ/ 6 MΩ/ 60 MΩ
+ Resolution: 0.1 Ωto 0.1 MΩ
- Audible continuity: yes
- Test diode: yes
- Hz:
+ Ranges: 600 Hz / 6 kHz / 50 kHz
+ Resolution: 0.1 Hz to 10 Hz
- Capacity:
+ Ranges: 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF
+ Resolution: 0.001 nF (1pF) to 10 μF
- Hold: yes
- Automatic power-off: yes
- Power supply: 1 x 9 V
- Dimensions / weight : 90 x 190 x 45 / 400 g

State at delivery: delivered with a set of banana leads, a set of test probes, a 9 V battery and
a CD containing the operating manual and the start-up guide + additional bag and Multifix adapter

datasheet
user guider
catalog vietnamese
catalog english

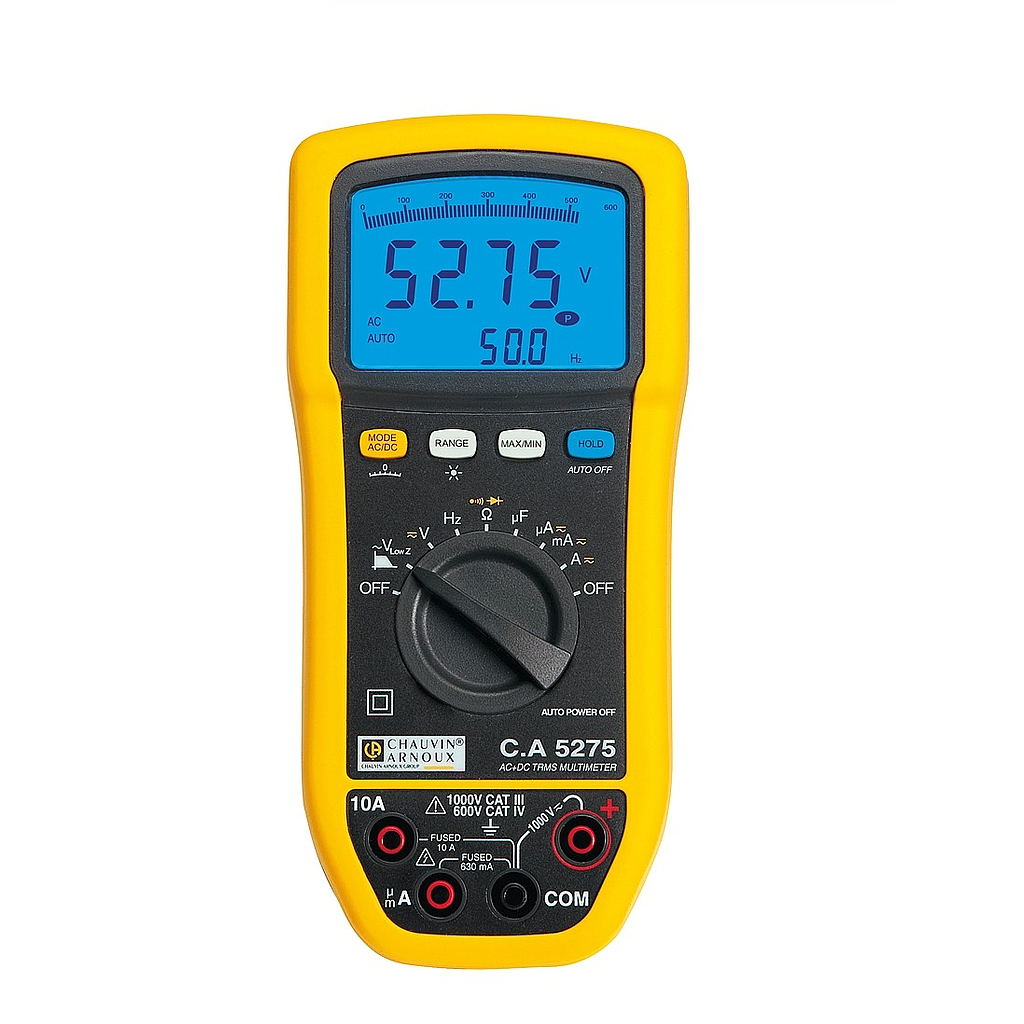

The C.A 5275 multimeter is equipped with a double 6,000-count backlit display and a 61+2-segment bargraph with remanent effect.
Its 600V CAT IV safety is backed by IP54 ingress protection.
Its very wide measurement ranges allow measurements up to 1,000 V, 10 A, 60 MΩ and 60 mF with resolutions of 10 μV, 1 μA, 100 mΩ and 1 pF.
Designed and manufactured in France by CHAUVIN ARNOUX, this multimeter comes with a 3-year warranty.
    TRMS AC+DC measurement of voltage and current
    12-bit converter
    5 measurements / second
    CAT IV 600V / CAT III 1,000V
    IP54
    Double 6,000-count backlit display and 61+2-segment bargraph
    Automatic or manual range selection
    VLowZ low-impedance voltage measurement with low-pass filter
    1,000 V / 10 A
    10 µV resolution
    Current from 1 µA
    Measurement of ionization currents
    Min / Max measurements
    Resistance / audible continuity
    Capacitance
    3-year warranty
