- Measurement range: - 100 to + 400°C
- Resolution : Display in °C: 0.1°C
- Intrinsic uncertainty in °C : ± (0.4% R + 0.3°C
FUNCTIONS
- Recording :
+ Manual start/stop on the product : Short press on MEM: spot recording / Long press on REC: recording at the rate of the current mode
+ Programmed recording: Start date, recording rate (interval from 1 minute to 2 hours) and end date can be customized with the PC software
- Alarms: Alarm thresholds set using the software. Visual alert on the product in the event of an overrun. Recording can be triggered on alarm thresholds
- Data storage: More than 1 million points
- Min-Max-Hold: Yes
- Backlighting:Yes
- Automatic power off:Yes
POWER SUPPLY
- Type: 3 x 1.5V AA / LR6 alkaline batteries. Mains connection possible with the mains / micro USB adapter proposed as an accessory
- Battery life: 800 hrs (portable mode)
PHYSICAL SPECIFICATIONS
- Interfaces: 2 possible communication modes: Bluetooth and USB
- Fixations : Casing equipped with a magnet, a wall-mount system and a slot for suspension of the product. Compatible with the Multifix accessory. Sheath available as an accessory
- Connections: 3-point flat connector
- Dimensions / weight : 150 x 72 x 32 mm / 260 g with batteries
- Ingress protection : IP54 casing
- Product operating range: Temperature from -10 to +60 ° C / Humidity from 10 to 90 %RH
- Standards: IEC61010-1 / IEC 61326-1
GENERAL SPECIFICATIONS
Windows Data Logger Transfer software functions: Real-time mode. Automatic report generation in Word format. Data format compatible with the Dataview software. Graph or value-table presentation . Data export in graph or Excel table format
State at delivery: Bag, 3 x 1.5 V AA alkaline batteries, USB cable, test report and quick start-up guide

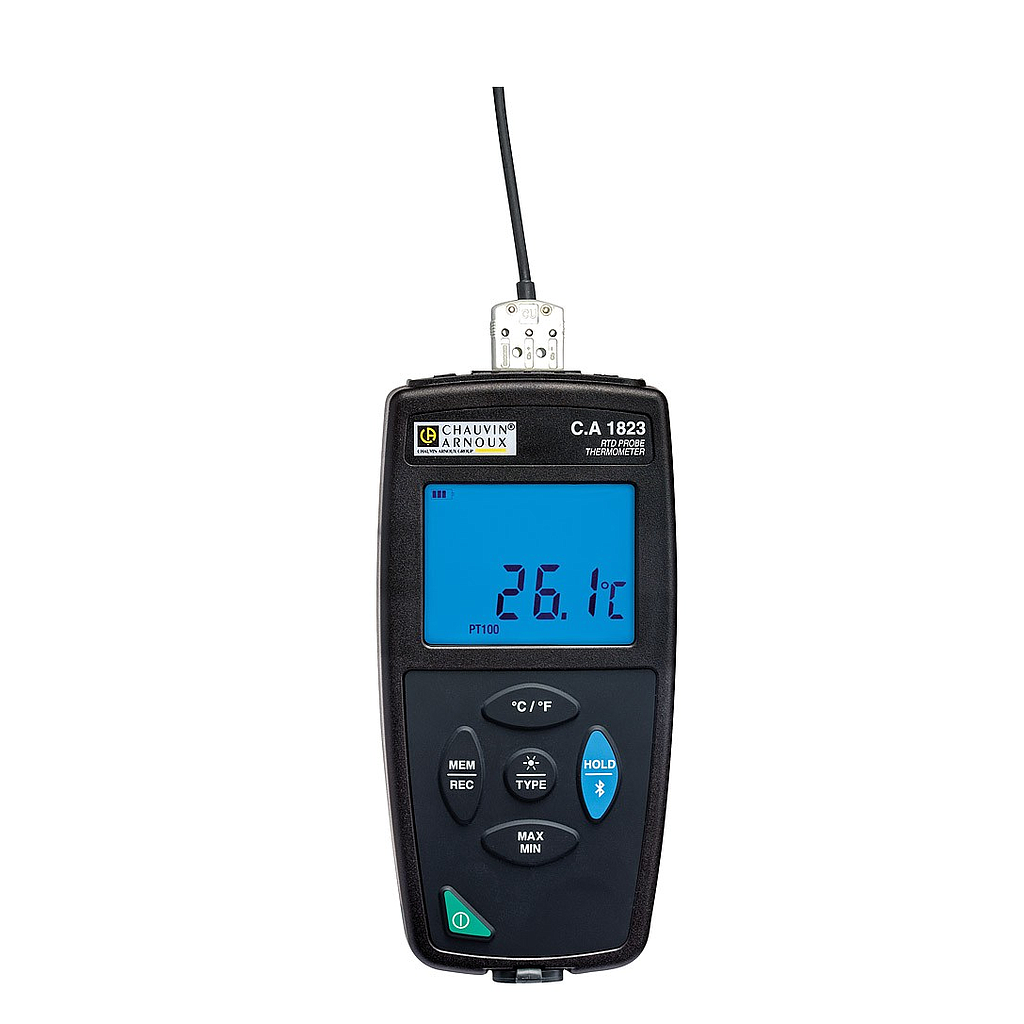

Compact and magnetized for fixed or portable use, the C.A 1823 resistance thermometer is an accurate, versatile, long-lasting thermometer. Equipped with a wide backlit display, it offers all the useful functions for work in the field, such as Min, Max, Hold, as well as spot or programmable recording possibilities.
Communicating via USB or Bluetooth, it is possible to program alarms and recording triggers on thresholds by means of the Data Logger Transfer software.
Additional specifications:
- 1 input for Pt100 or Pt1000 sensors
- Measurement range: - 100 to + 400°C
- Intrinsic uncertainty: ± (0.4% R + 0.3°C)
- Resolution: 0.1 °C or 1 °C
- Min, Max, Hold functions, Alarms / °C or °F / Backlighting
- Recording up to 1 million points
- USB or Bluetooth interfaces
- IP54 casing
- 3-pole flat-pin connector
- Dimensions: 150 x 72 x 32 mm
- Weight: 260 g with batteries
- Compatible with the Multifix accessory
- Shockproof protective sheath available as an accessory
