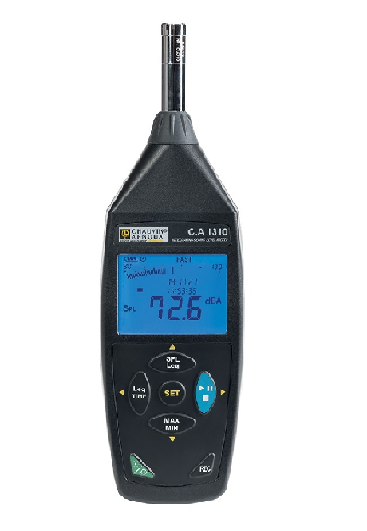

Chauvin Arnoux C.A 1310 ເຄື່ອງວັດແທກລະດັບສຽງ (30.0 ~ 130.0 dB; Dataloger)

Microphone: ½" electret-condenser microphone

Measurement range: 30.0 to 130.0 dB

Frequency range: 20 Hz to 8 kHz

Accuracy: (in reference conditions at 94 dB, 1 kHz) ± 1 dB

Frequency weighting: A / C

Time weighting FAST: 125 ms / SLOW: 1 second

FUNCTIONS

Measurement modes: SPL (sound pressure level), Leq (equivalent continuous sound level),

Max L (maximum sound level), Min L (minimum sound level)

Recording: 64,000 points

Time display and time/date-stamping Yes

Min/Max Yes

DISPLAY

Digital display: 0.1 dB resolution / Display refresh rate: 500 ms

Bargraph: 50 segments, display refresh rate: 50 ms

Backlighting: Yes

POWER SUPPLY

Batteries: 1.5V AA x 4

Battery life: More than 60 hours

PHYSICAL SPECIFICATIONS

Interfaces Micro USB for data transfer or use of mains power supply

Analogue AC / DC Jack output: AC output: 1 Vrms at full scale / DC output: 10 mV / dB

Tripod insert: Yes

Dimensions / weight 262 x 75 x 39 mm / 390 g (with batteries)

Ingress protection IP 40

Standard state at delivery :

• CA 1310: delivered in a hard case with batteries, foam wind-shield, software on CD-Rom, 1 male Jack socket, User’s Manual, Cerification Certificate.

Accessories & replacement parts :

CA 833 sound level meter calibrator P01185301

Foam wind-shield. P01102083

5-metre sound level meter

microphone extension cable  P01102190

USB mains adapter

(supplied with USB/μUSB cable)  P01651023

4 x AA/LR6 rechargeable batteries + charger  HX0053

Datasheet
