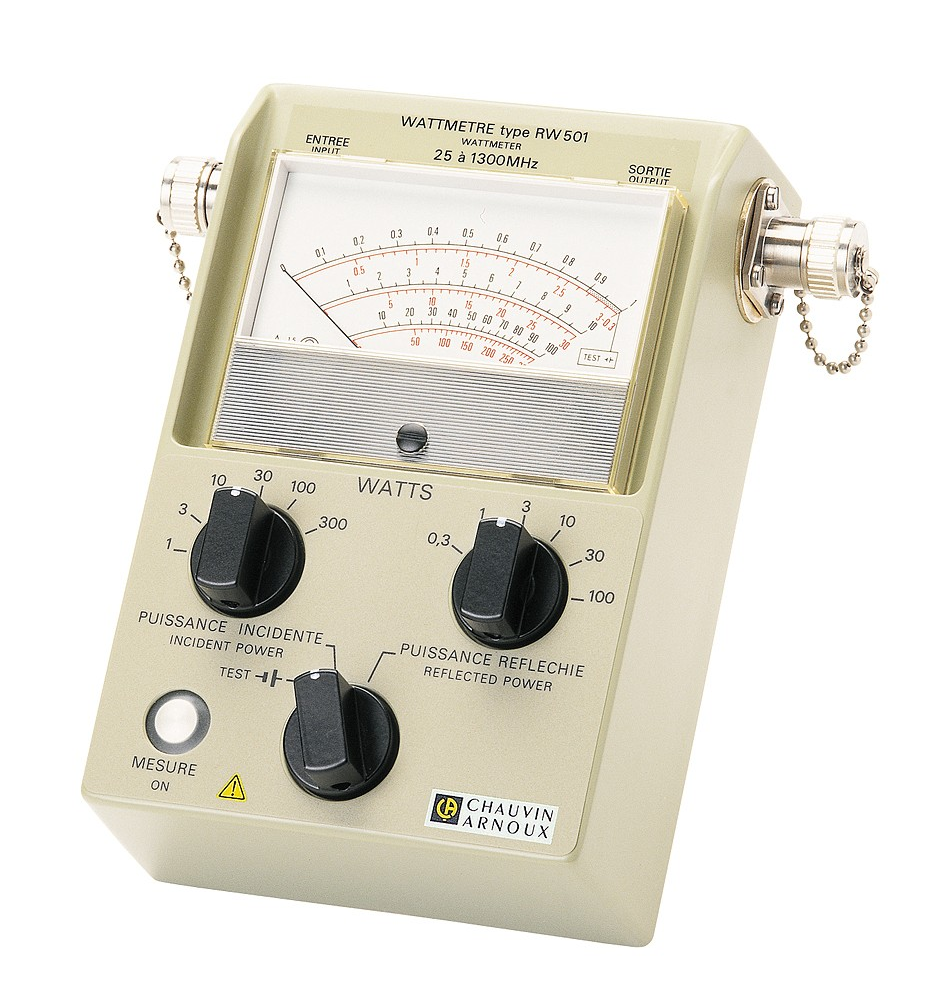

Chauvin Arnoux ORITEL RW501 wattmeter microwave ທິດທາງ

- Frequency: 25 to 1300 MHz
- Power:
+Incident: 1 W to 300 W
+Reflected: 0.3 W to 100 W
- Accuracy: ± 6% from 25 to 1000 MHz; ± 8% from 1000 to 1300 MHz
- Use: FM, TV Radio networks
- Impedance: 50 Ω
- Insertion loss: < 0.1 dB
- Residual S.W.R.:≤1.15
- Input and output connectors: N female
- Power supply:2 x 1.5 V batteries ; one 9 V battery for the RW 511
- Operating temperature:0 to +50°C
- Weight: approximately 1.4 kg
- Dimensions (l x h x d) : 180 x 120 x 60 mm
