- Display: 2 x 6,000 counts with backlighting
- Bargraph: 61 + 2 elements, dual mode (full scale/central zero)
- Acquisition: TRMS AC / DC / AC+DC
- Measurement range: 5 measurements / second
- Autorange / Deactivatable : Yes / yes
- Automatic AC /DC detection: No
- Vdc:
+ Ranges: 60 mV / 600 mV / 6 V / 60 V / 600 V / 1,000 V
+ Typical accuracy: 0.09 % + 2 cts
+ Resolution: 0.01 mV to 1 V
- Vac:
+ Ranges: 60 mV / 600 mV / 6V / 60 V / 600 V / 1,000 V
+ Resolution: 0.01 mV to 1 V
+ Bandwidth: 40 Hz to 10 kHz
- VLowAC (low impedance + low-pass filter)
+ Ranges: 600 mV / 6V / 60V / 600V / 1,000 V
+ Resolution: 0.1 mV to 1 V
- Vac+dc:
+ Ranges: 60 mV / 600 mV / 6V / 60 V / 600 V / 1,000 V
+ Resolution: 0.01 mV to 1 V
- Adc
+ Ranges: 6,000 μA / 60mA / 600 mA / 6 A / 10 A (20 A / 30 s
+ Resolution: 1 μA to 0.01 A. Ionization current: 0.2 μA to 20.0 μA
- Aac:
+ Ranges: 6,000 μA / 60 mA / 600 mA / 6 A / 10 A (20 A / 30 s)
+ Resolution: 1 μA to 0.01 A
- A ac+dc:
+ Ranges: 6,000 μA / 60 mA / 600 mA / 6 A / 10 A (20 A / 30 s)
+ Resolution: 1 μA to 0.01 A
- Resistance:
+ Ranges: 600 Ω/ 6,000 Ω/ 60 kΩ/ 600 kΩ/ 6 MΩ/ 60 MΩ
+ Resolution: 0.1 Ωto 0.1 MΩ
- Audible continuity: yes
- Test diode: yes
- Hz:
+ Ranges: 600 Hz / 6 kHz / 50 kHz
+ Resolution: 0.1 Hz to 10 Hz
- Capacity:
+ Ranges: 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF
+ Resolution: 0.001 nF (1pF) to 10 μF
- T°:
+ Ranges: -59.6 °C to +1,200 °C
+ Resolution: 0.1° to 1 °
- Hold: yes
- Min / MAX (100 ms: có
- Peak+ / Peak- (1 ms): có
- Differential measurement (X) / Relative (DX/X%): có
- Automatic power-off: yes
- Power supply: 1 x 9 V
- Dimensions / weight : 90 x 190 x 45 / 400 g
State at delivery: delivered with a set of banana leads, a set of test probes, a 9 V battery and a CD containing the operating manual and the start-up guide + additional K thermocouple temperature sensor, bag and Multifix adapter
datasheet
user guider
catalog vietnamese
catalog english

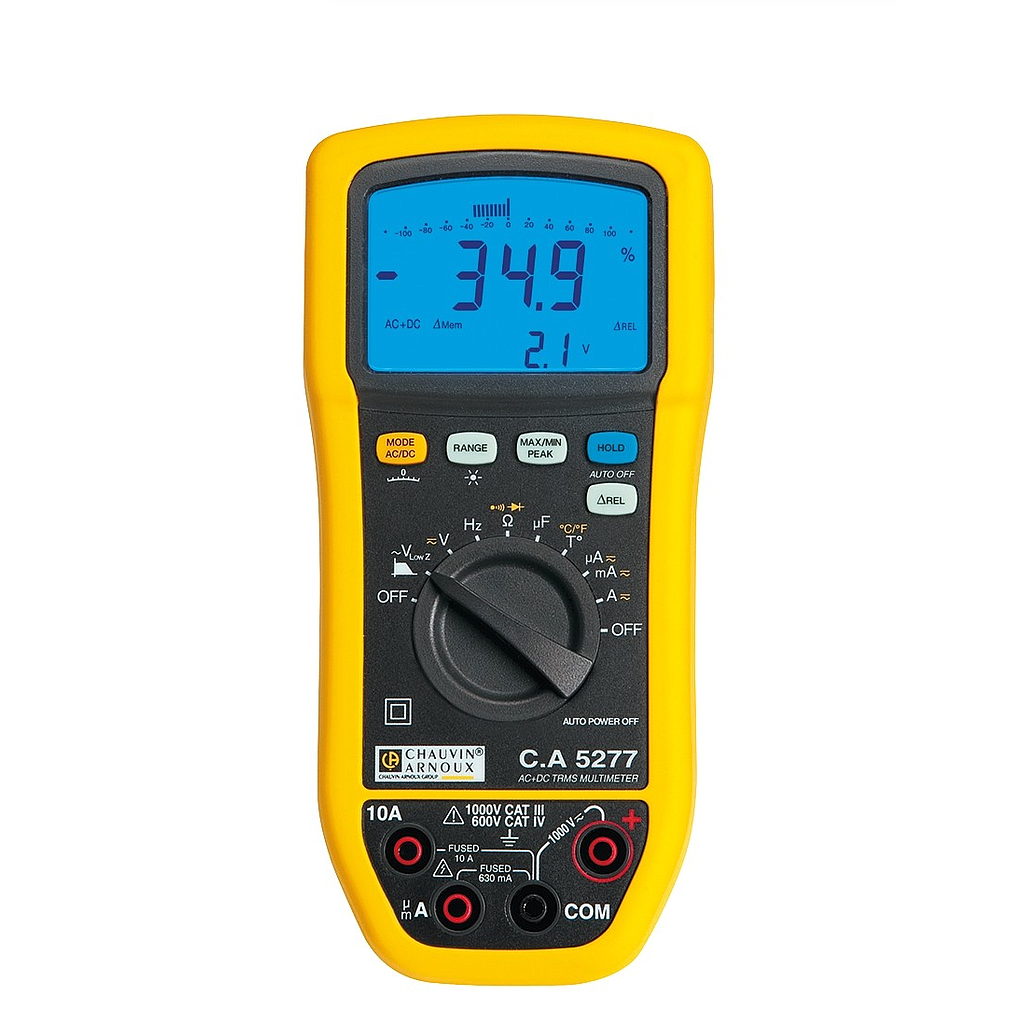

The comprehensive C.A 5277 multimeter is equipped with all the functions needed for testing, maintenance and inspections
With its high-speed 12-bit converter, the C.A 5277 performs 5 TRMS AC+DC measurements per second with high accuracy whatever the form or type of the signal.
TRMS AC+DC measurement of voltage and current
12-bit converter
5 measurements / second
CAT IV 600V / CAT III 1000V
IP54
Double 6,000-count backlit display
Bi-mode bargraph with 61+2 segments (full scale/central zero)
Automatic or manual range selection
VLowZ low-impedance voltage measurement with low-pass filter
1,000 V / 10 A
10 µV resolution
Current from 1 µA
Measurement of ionization currents
Resistance / audible continuity
Temperature / Capacitance
μA range for ionization current measurement
Min / MAX (100 ms)
Peak+ / Peak- (1 ms)
Differential measurements (&Delta ;X) et RELative (&Delta ;X/X%)
3-year warranty
