- Ferrodynamic equipment
+6 DC or single-phase AC voltage ranges: 60 V to 480 V
+4 balanced three-phase AC voltage ranges: 60 V√3 to 240 V√3
+1 current range: 5 A
- Accuracy
± 1 % for single-phase AC
± 2 % for balanced three-phase AC
± 2.5 % for DC
- Frequency response
+Reference range: 45 to 65 Hz
+Operating range: 15 Hz to 500 Hz
- Dial
+1 black scale (0 to 120)
+1 red scale (0 to 90)
- Fuse: 6.3 A HRC
- Dimensions and weight : 165 x 105 x 50 mm – 450 g
- Electrical safety: 600 V CAT III as per IEC/EN 61010-1 Edition 2
Accessories:
- Shockproof sheath P01298016
-Spare fuses (set of 10) 1 A HRC 380 V 50 kA fuse P03297507
+10 A HRC 380 V 50 kA fuse P03297510
+315 mA HRC 380 V 50 kA fuse P03297509
+1.25 A HRC 380 V 50 kA fuse P01297015
+6.3 A HRC 380 V 100 kA fuse P01297016
+3.15 A HRC 380 V 50 kA fuse P01100726
+160 mA 380 V 50 kA fuse P03297508

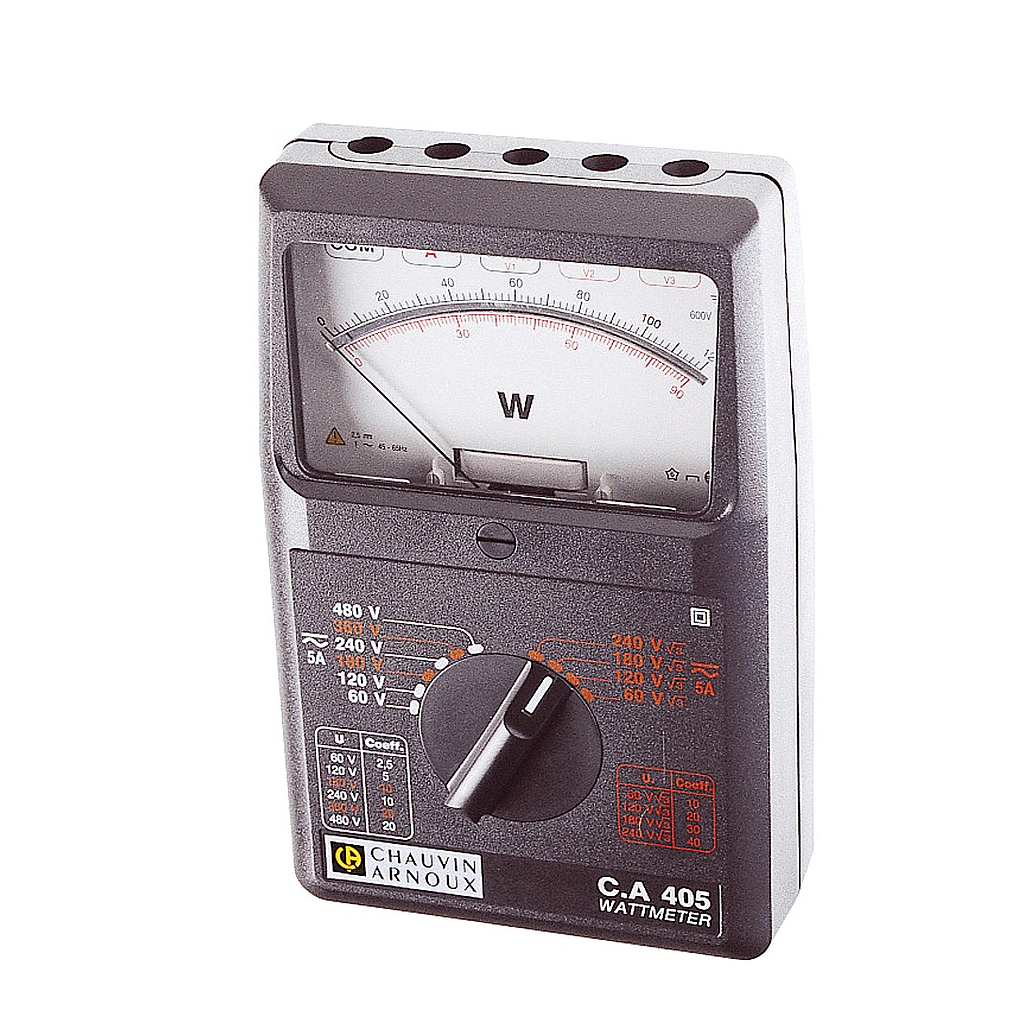

One of the C.A 400 series of training testers, the C.A 405 AC/DC analogue wattmeter is particularly suitable for use in training and for laboratory purposes .
Functions:
