- Voltage range: 6 Vrms to 600 Vrms AC+DC ±(0.5 % +2 counts)
- AC current range: 100 mA to 6,500 A ±(0.5 % +1 count)
- DC current range: 100 mA to 1,700 A ±(1 % +1 count)
- Min, Max, Avg, and Peak values (+ and -), CF: Yes
- Fundamental frequency: 40 Hz to 70 Hz
- Screen: ¼ VGA colour LCD
- Single-phase and balanced three-phase: Yes
- W, VA and var power values, DF, THD, Cos φ: Yes
- varh and VAh energy values, Wh: Yes
- Harmonics: Up to 50th order
- Recordings: Up to several days
- Alarms: 4,096
- PST flicker: Yes
- Inrush: 18 s
- Phase rotation: Yes, with display of phase order in three-phase systems
- Storage of measurements: Yes
- Ambient temperature: 23 °C ±3 K
- Relative humidity: 45 % ; 75 %
- Protection rating: IP54
- RS232/USB port: Yes
- IEC 61010-1: 600 V, Cat. III
- Power supply: Batteries, charge life up to 40 hours
- Dimensions: 211 x 108 x 60 mm /880 g (with rechargeable batteries)
State of Delivery: 6 fitted AA batteries, 1 red banana lead (straight-straight), 1 black banana lead (straight-straight), 2 x 4 mm test probes (1 red, 1 black), 2 crocodile clamps (1 red, 1 black), 1 optical USB cable and Power Analyzer Transfer software.
Accessories available as optional extras
- 4 mm red and black test probes P01295454Z
- Red and black crocodile clips P01295457Z
- 4 mm red and black banana/banana leads P01295451Z
- MN93A BK clamp P01120434
- MN93 BK clamp P01120425
- AmpFlex A193 450 mm BK P01120526
- AmpFlex A193 800 mm BK P01120531
- PAC93 BK clamp P01120079
- C193 BK clamp P01120323
- Mains adapter P01160640
- E3N clamp P01120043A
- C.A 8220 / E3N adapter P01102081
- RPM sensor P01102082
- Optical/USB cable HX0056-Z
- DataVIEW processing software P01102095
- Carrying bag No 5 P01298049
All your power measurements in parallel!

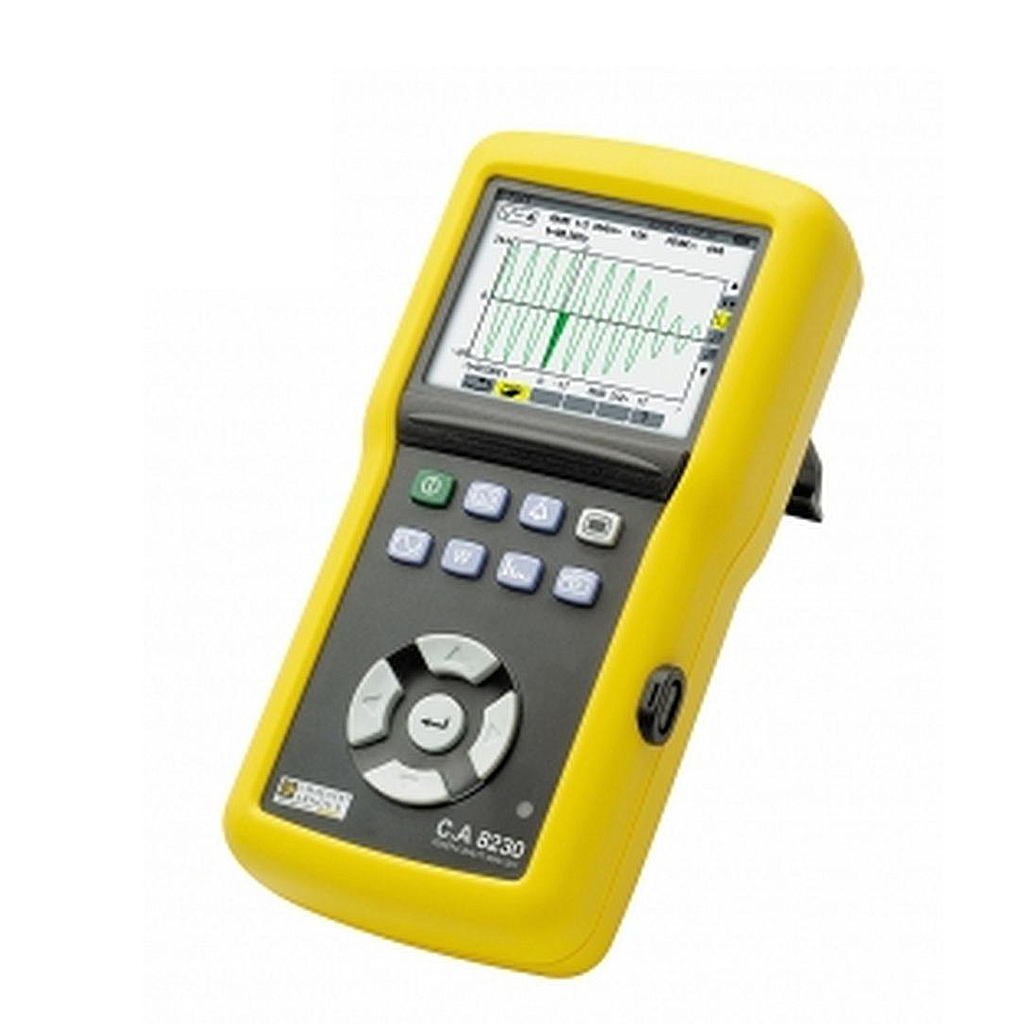

The C.A 8230 single-phase or balanced three-phase power analyser is economical and extremely easy to use. Equipped with direct access to its various functions, it provides greater safety as it automatically recognises the type of connected sensor. It is ideal for on-site or bench-top use.
It provides you with all the power measurements you need. It will enable you to measure and qualify your electrical network harmonics. An Inrush mode for starter currents will show your waveform in detail during several seconds. Like its big brother, the Qualistar, the C.A 8230 has a recording mode and a trigger mode for alarms.
