- Display:With backlit triple digital display
- Type of installation:Single-phase, split-phase, three-phase with or without neutral and many other specific configurations
- Number of inputs:5 voltage inputs, 4 current inputs
- Number of channels:4 voltage channels, 4 current channels
Measurements
- Network frequency:DC, 50 Hz, 60 Hz and 400 Hz
- Voltage (measurement ranges / best accuracy):10.00 V to 1,000 VAC @ 50/60 Hz, or 600 VAC @ 400 Hz / 1,000 VDC
- Current (depending on sensors) (measurement ranges / best accuracy):5 mAAC to 10 kAAC / 50 mADC to 1.4 kADC
Calculated measurements
- Ratio:Up to 650,000 V / up to 25,000 A
- Power:20 W to 10 GW / 20 var to 10 Gvar / 20 VA to 10 GVA
- Energy:Up to 4 EWh / 4 EVAh / 4 Evarh (E = 1018)
- Phase: cos φ, tan φ, PF
- Phase sequence:Automatic selection of the phase sequence
- Harmonics:Up to the 50th order
Additional functions
- Phase sequence:Indication of valid connection
- Min / Max:On all quantities
Recording
- Sampling rate/ Acquisition rate / Aggregation:128 samples/period - 5 measurements/s - from 1 min to 1 hr
- Storage:SD card, 8 GB (up to 32 GB with SD-HC card)
- Communication:Ethernet, Bluetooth, Wifi and USB
- Power supply:Self-powered internally from 94 to 1,000 V @ 50-60 Hz & 400 Hz / DC
- Safety:IEC 61010 1,000 V CAT IV
Mechanical specifications
- Dimensions:245 x 270 x 180 mm
- Weight:< 4 kg
- Protection:IP 67
State at delivery:
- 5 x 3 m black silicone cables, straight banana / straight banana, 5 black 1,000 V CAT IV crocodile clips, 1 set of inserts/rings,
- 4 AmpFLEX® IP67 A196 3 m long, 1 set of waterproof plugs, 1 SD card, 1 USB cable, 1 bag, 1 safety datasheet, USB key containing 1 quick start-up guide and 1 user manual
Accessories:
- Set of waterproof plugs P01102147
- Pole-mounting kit P01102146
- DataView® software P01102095
- Crocodile clips kit (x 5 P01102099
- Set of inserts/rings P01102080
- 5 A adapter P01101959
- Leads kit (x 5) BB196 P01295479
- Reeling Box P01102149
- E3N adapter P01102081
- PA30 mains power pack P01102057
PEL Android application / NEW VERSION V 1.8.25 now including MOTOR measurement applications
Motor Measurement Applications
datasheet
user guider
catalog vietnamese
catalog english

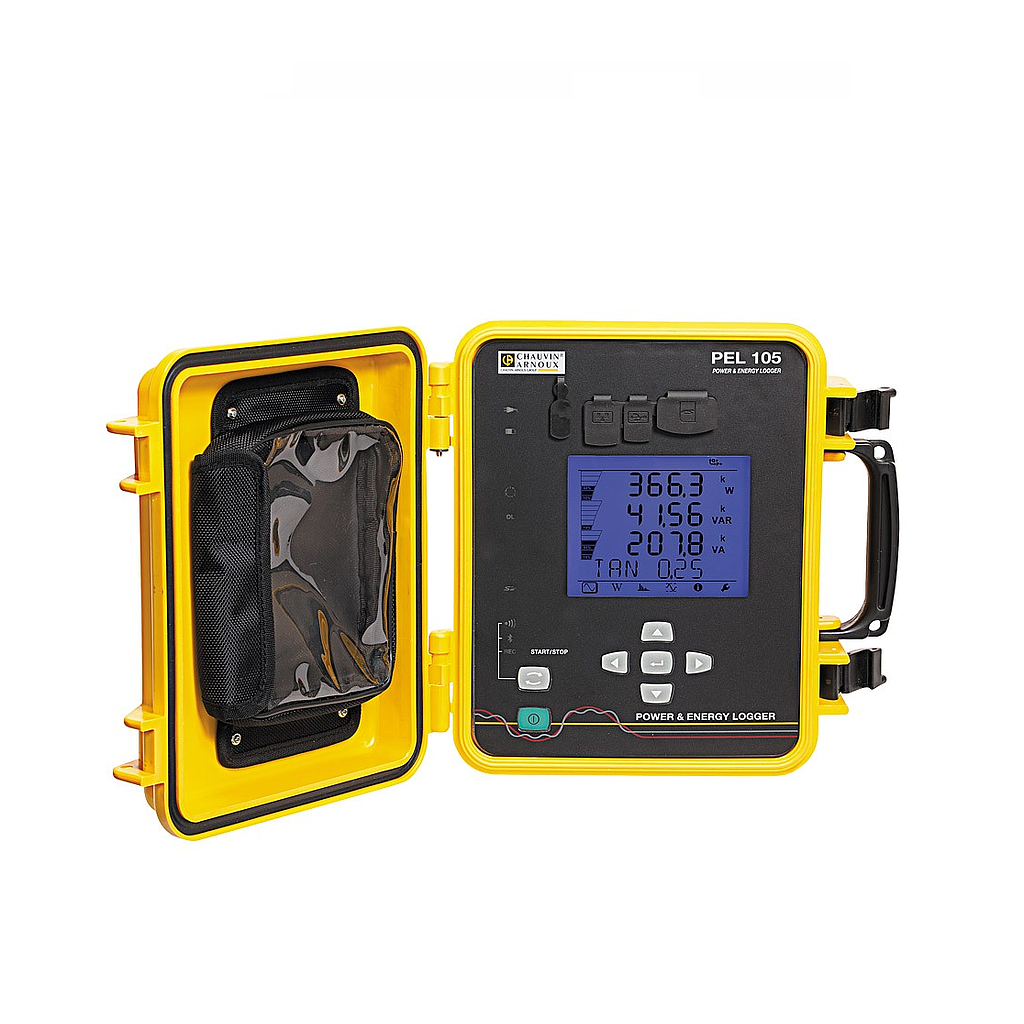

The PEL 105 logger is particularly simple to use with an all-terrain IP67 casing capable of withstanding shocks, UV rays and extreme temperatures.
It is ideal for outdoor installation directly on an electricity pole. With its 1,000 V CAT IV safety rating, it can be used for measurements on all LV networks, including measurements of the neutral-earth voltage and the neutral current. This stand-alone instrument is equipped with a selfpowering system via its voltage inputs up to 1,000 V. The PEL 105 offers 5 voltage inputs and 4 current inputs. Compatible with a large number of current sensors to make it easier to use, it also recognizes the sensors
automatically.
The PEL 105 can be used to measure, record and analyse the power values (W, var, VA) and energy values (kWh, kvarh, kVAh). At the same time, they record the PF and the DPF. Recording is continuous with a sampling interval of 200 ms.
