Specifications
- Clamping diameter : Ø 34 mm
- Display: Backlit LCD
- Resolution: 6,000 counts
- Number of values displayed : 1
- Type of acquisition: TRMS [AC]/ DC
- Autorange function: yes
- Automatic AC/DC detection: yes
- Aac: 0.15 to 600 A (900 A peak)
- Adc: 0.15 to 900 A peak
- Best accuracy: 1 % R + 3 số
- Vac: 0.15 đến 1,000 V (đỉnh 1,400 V )
- Vdc: 0.15 đến 1,400 V
- Resistance: 60 kΩ
- Audible continuity: Adjustable from 1 Ω to 599 Ω
- Diode test (semi-conductor junction): yes
- Adapter: yes
- Single-phase and total three-phase power values: yes
- Temperature(K type): °C: -60.0 to +1,000.0 °C
Functions
- Overcurrent measurement: yes
- Motor Inrush: yes
- Load evolution (TrueInrush): yes
- Hold: yes
- Min / MAX: yes
- RELative ΔX: yes
- Differential ΔX / X(%): yes
- Auto Power Off : yes
- Electrical safety according to IEC 61010: 600V CAT IV
- Power supply : 1 x 9 V LF22
- Dimensions / Weight: 78 x 222 x 42 mm / 340 g
State at delivery: delivered with 1 mains lead for recharging and 1 operating manual in 5 languages
Accessories (optional):
- 1 set of PVC cables (black/red) with built-in test probes; Ø 4 mm isolated elbowed male banana plug
- 1 x 9 V 6LR61 battery; 4 x 1.5V LR03 batteries for F400/600 clamps
- Multifix bag 120 x245 x 60 mm for F200 clamps; 120 x320 x 60 mm for F400/600 clamps
datasheet
user guider
catalog vietnamese
catalog english

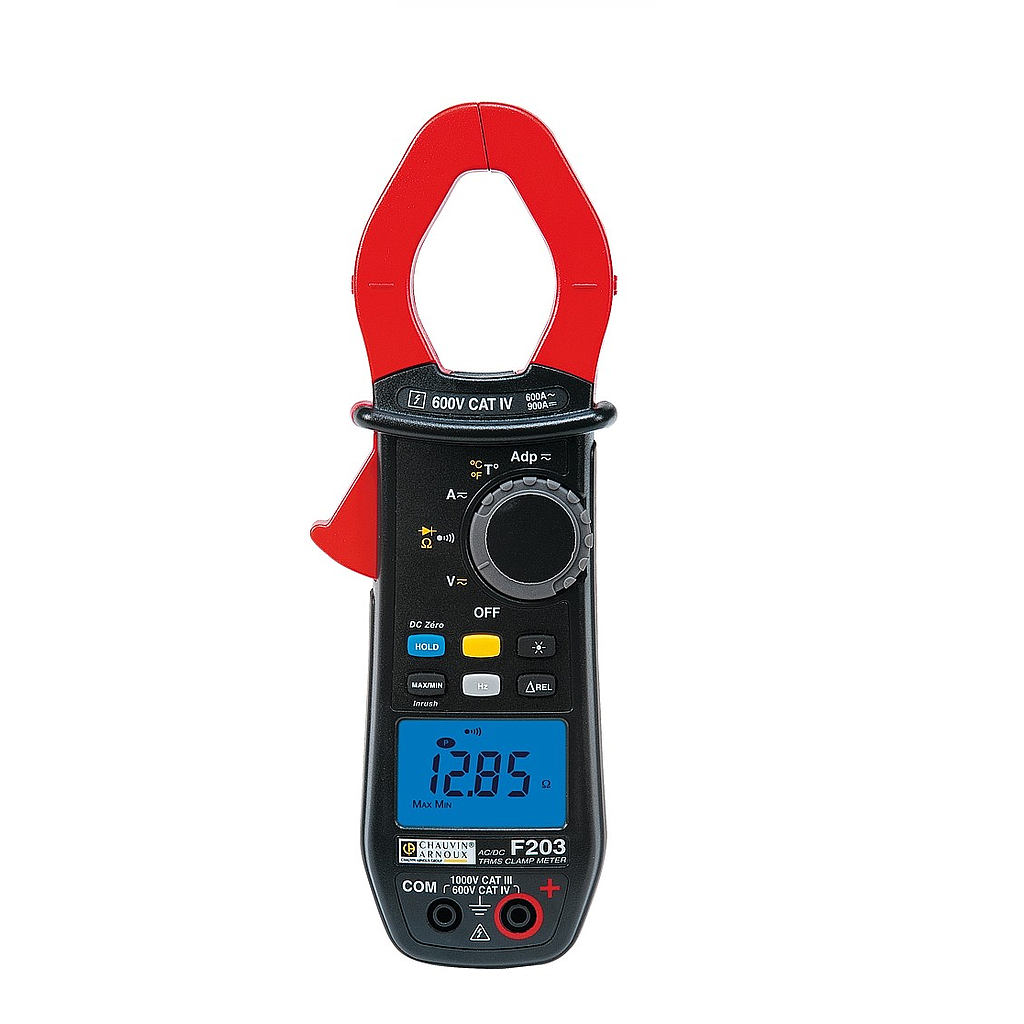

The F203 clamp is ideal for the needs of both self-employed electricians and SME contractors in the electrical sector.
Equipped with a fast 12-bit TRMS digital acquisition system, F203 clamps offer particularly accurate measurements whatever the signal's type and waveform.
Specifications:
Clamping diameter: 34 mm
600 A AC / 900 A DC current measurement
AC and DC voltage up to 1,000 V
Resistance and audible continuity
Temperature
Automatic AC/DC detection
TrueInrush current measurement
Hold, Min, MAX
RELative (ΔX) and differential (ΔX/X) measurements
Adapter function
CAT IV 600 V
