- Input
+ Very low current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ Low current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ Medium current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ High current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ AC: yes
- Output / Connections
+ Voltage: 3 VAC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 100 mV/A; 10 mV/A; 1 mV/A
+ Power measurement (low phase shift): yes
+ Bandwidth (frequency in Hz): 10 Hz .. 20 kHz; 10 Hz .. 20 kHz; 10 Hz .. 20 kH
+ Typical accuracy: ≤ 1%
datasheet
user guider
catalog vietnamese
catalog english

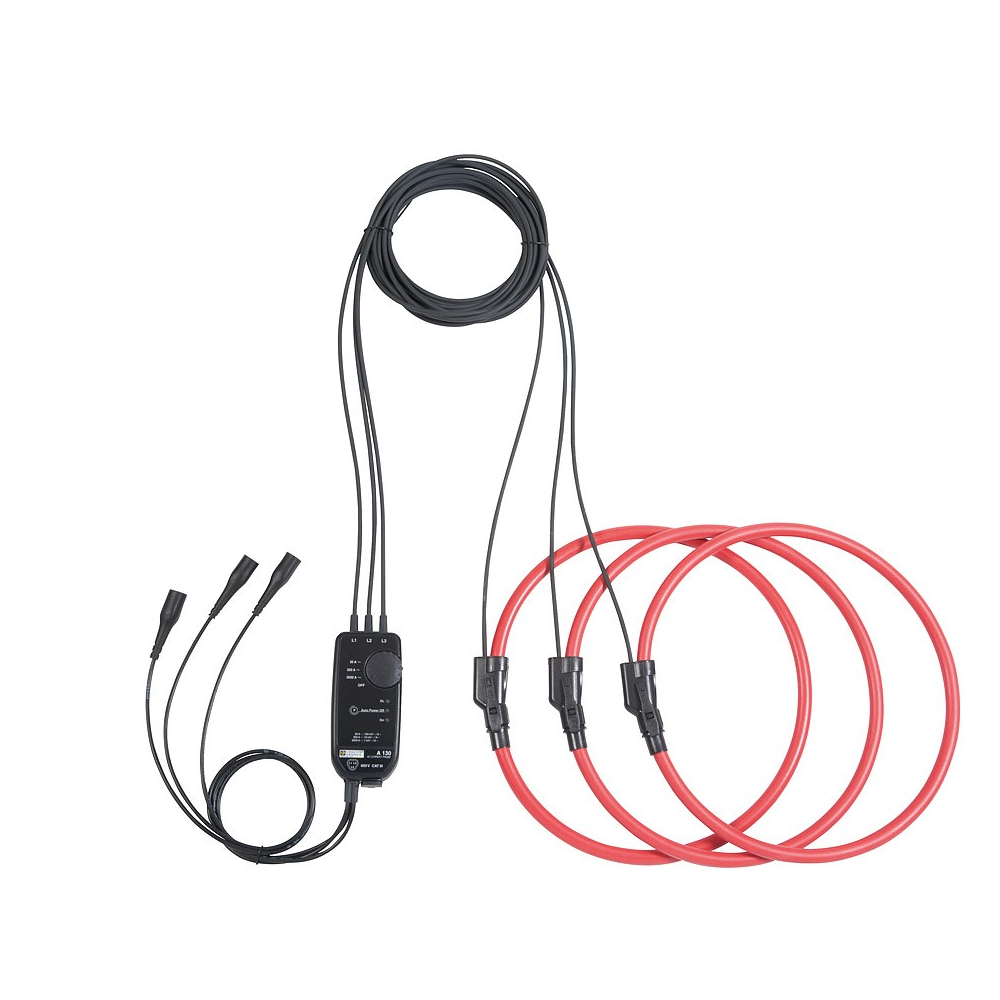

The AmpFlex® A130 is a flexible current sensor comprising 3 measurement loops. It can be connected directly to a power analyser, logger, etc., to measure 3-phase currents or to perform up to 3 independent current measurements.
These flexible cores offer the following major advantages:
• Their flexible, lightweight design means they can encircle one or more conductors, whatever their shape (cable, busbar, strand, etc.)
• Large measurement range
• Bandwidth suitable for industrial frequencies and harmonic analysis
• No saturation effect, so no overheating
• Constant low phase shift appropriate for wattmetric measurements
Main specifications :
• Measurement range: 0.5 A to 3 kA
• 3 calibres
• Sensor length (clamping Ø): 80 cm (Ø25 cm)
• Ingress protection of sensor/processing unit: IP67 / IP54
• Output signal: AC voltage
• Output via 3 coaxial cables terminated by isolated BNC safety plugs
• Power supply: 2 x 1.5V AA batteries or external µUSB type B 5V
• Battery life: 500 hours
• 1,000 V CAT IV
