Display range: 4 A AC- 40 A AC - 400 A AC
Measurement range: 0.020 A-3.999 A; 4.00 A-39.99 A; 40.0 A-399.9 A
Resolution : 1 mA; 10 mA; 100 mA
Accuracy: ± (2% + 10 cts); ± ( 1.5 %+ 2 cts); ± (1.5 %+ 2 cts)
Sensor clamping diam. / length: Ø 70 mm / 250 mm
Bandwidth: 10 Hz - 3 kHz- Power supply: 2 x 1.5 V AAA/LR3 batteries
Safety: IEC 61010 CAT IV 600V
Operating temperature: 0°C to +50°C
Instrument weight: Approx. 130 g
Casing dimensions: 100 x 60 x 20 mm
Length of connection cable: 0.8 m
State at delivery: 1 DigiFLEX sensor delivered in a blister pack with 2 x 1.5V AAA batteries, 1 elastic strap and an operating manual in 5 languages
Accessories & Replacement Parts: Bag 120 x 200 x 60 P01298074MULTIFIX accessories P01102100ZElastic strap P01102113
The DigiFlex can be used for TRMS AC current measurements while also providing a solution when access to the electrical conductors is difficult. The values are read directly on the built-in 4000 count display.
The MA400D version, whose measurement range starts at 20 mA, is designed for work in residential conditions and can also be used to check electricity distribution points up to 400 A
Ammeter with a flexible sensor for measuring current on electrical conductors up to a diameter of 45mm (MD400-170) or 70mm (MD400-250)

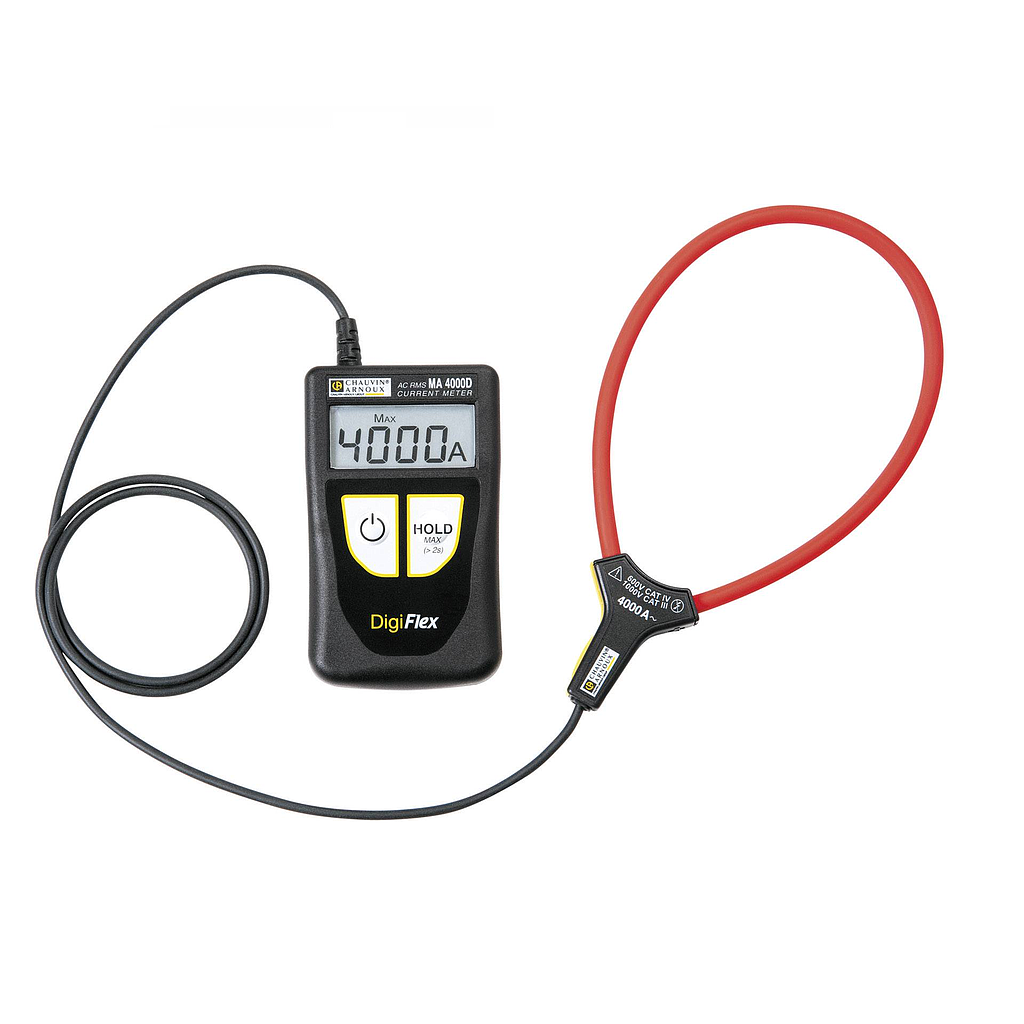

The DigiFlex MA4000D is a flexible current sensor with a measurement range up to 4000A, making it perfectly suited for use on power installations in the industrial and energy production sectors
The flexible sensor measure 350mm in length and can be fitted around electrical conductors with a diameter up to 100mm
IEC 61010 CAT IV 600V
