- Input
+ Low current: 0.5 - 240 A
+ Medium current: 0.5 - 240 A
+ High current
+ AC: yes
- Output / Connections
+ Voltage: 20 V DC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1A/100mV
+ Bandwidth (frequency in Hz): 48 Hz-10 Hz
+ Typical accuracy: ≤ 2%
datasheet
user guider
catalog vietnamese
catalog english

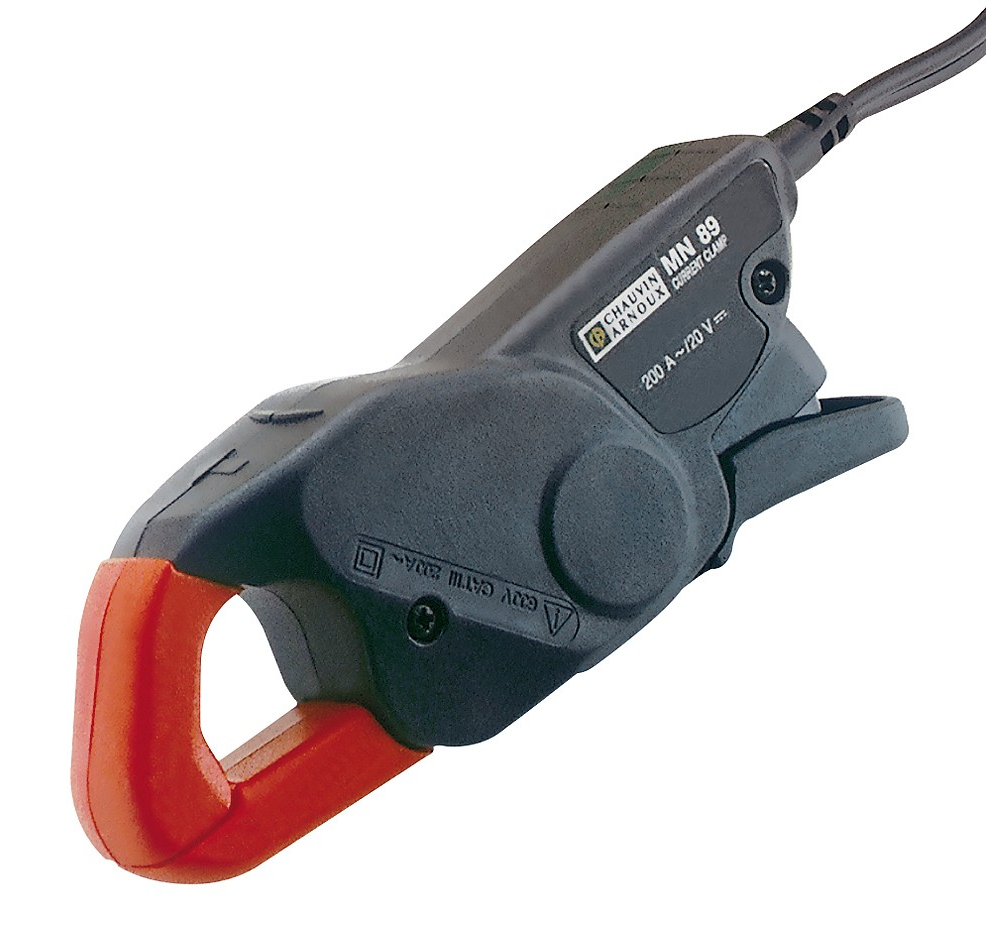

The MN Series is a range of versatile transformer clamps for measuring alternating currents up to 240 A with a multimeter or a power analyser.
Compact and ergonomic, the jaw is suitable for measurements in places where access is difficult and can also be used to clamp any cable up to 20 mm in diameter in installations up to CAT III 600 V or CAT IV 300 V.
The MN89 clamp outputs a DC voltage which is particularly useful for multimeters with insufficient V AC or A AC sensitivity.
Main features of the MN89 model:
