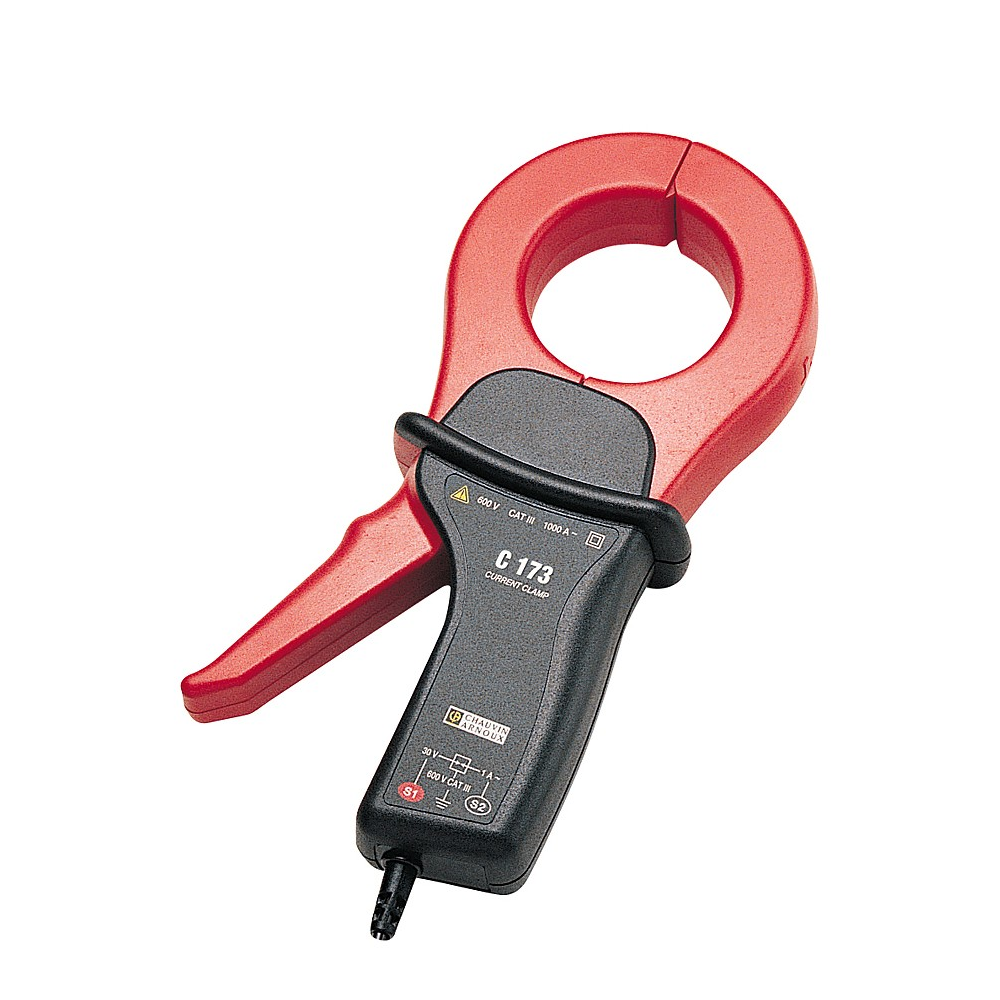

Chauvin Arnoux C173 ການວັດແທກກະແສໄຟຟ້າ AC (1200A)

- Input
+ Very low current: 1 - 300 A; 1 - 600 A; 1 - 1,200 A
+ Low current: 1 - 300 A; 1 - 600 A; 1 - 1,200 A
+ Medium current: 1 - 300 A; 1 - 600 A; 1 - 1,200 A
+ AC: yes
- Output / Connections
+ Voltage: 1 V AC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1A/1V; 10A/1V; 100A/1V; 1,000A/1V
+ Bandwidth (frequency in Hz): 10 Hz-3 kHz
+ Typical accuracy: ≤ 0.7%; ≤ 0.5 %; ≤ 0.3%; ≤ 0.2%
