- Input
+ Very low current: 0.1 A - 1,200 A
+ Low current: 0.1 A - 1,200 A
+ Medium current: 0.1 A - 1,200 A
- Output / Connections
+ Current: 1 A AC
+ Female sockets ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1,000/1
+ Bandwidth (frequency in Hz): 30 Hz-10 kHz
+ Typical accuracy: ≤ 0.5 %
datasheet
user guider
catalog vietnamese
catalog english

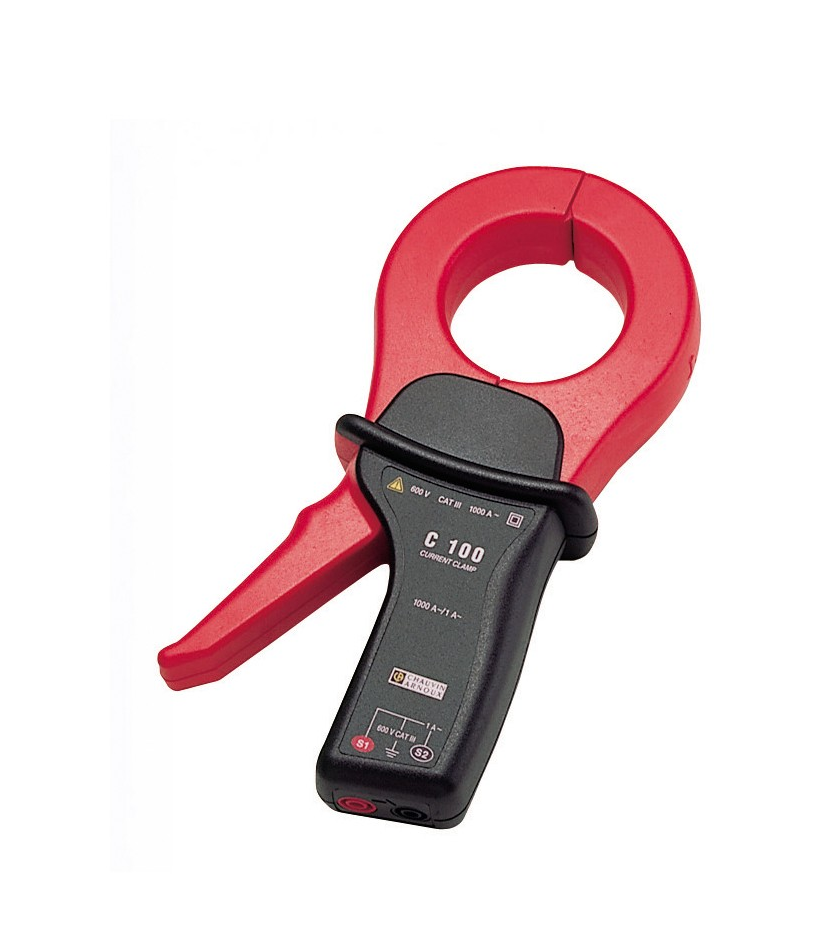

The C Series is a range of high-performance 1,000 A transformer clamps. The round jaw shape and the uniformly-distributed winding guarantee accuracy and minimum phase difference.
It is equipped with an oscillating magnetic element adjustment system and a patented system for gradual assisted jaw opening.
Its Ø 52 mm clamping capacity allows current measurements on most conductors on CAT III 600 V industrial and tertiary installations.
Main features of the C100 model:
