- Input
+ Medium current: 1 - 3000 A
+ AC: yes
- Output / Connections
+ Current: 3 A AC
+ Female sockets ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 3,000/3
+ Output protected against overvoltage: yes
+ Power measurement (low phase shift): yes
+ Bandwidth (frequency in Hz): 30 Hz -5 kHz
+ Typical accuracy: ≤ 0.5 %
datasheet
user guider
catalog vietnamese
catalog english

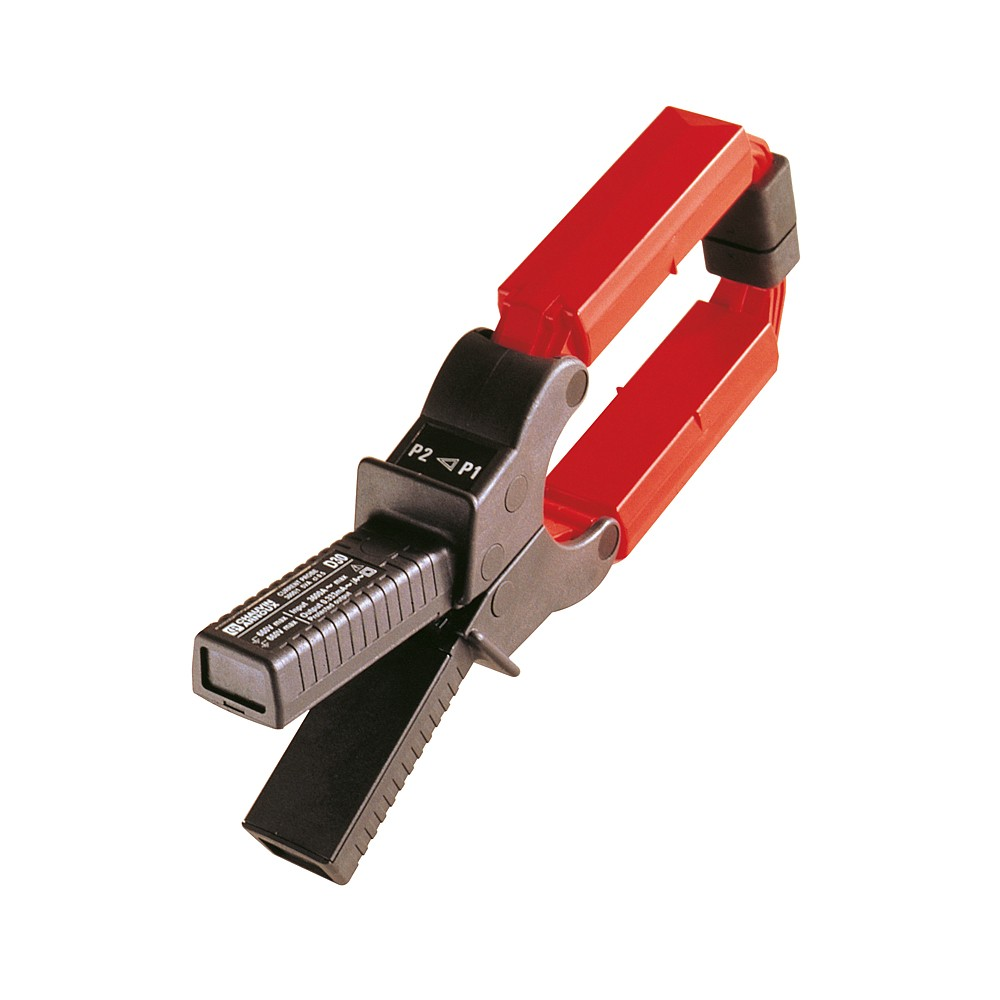

The D Series is a range of transformer clamps for accurate measurement of alternating currents up to 3,000 A.
The rectangular jaw shape, the quality of the magnetic circuits and the evenly-distributed winding makes it ideal for accurate measurements on large cables or busbars.
Main features of the D36N model:
