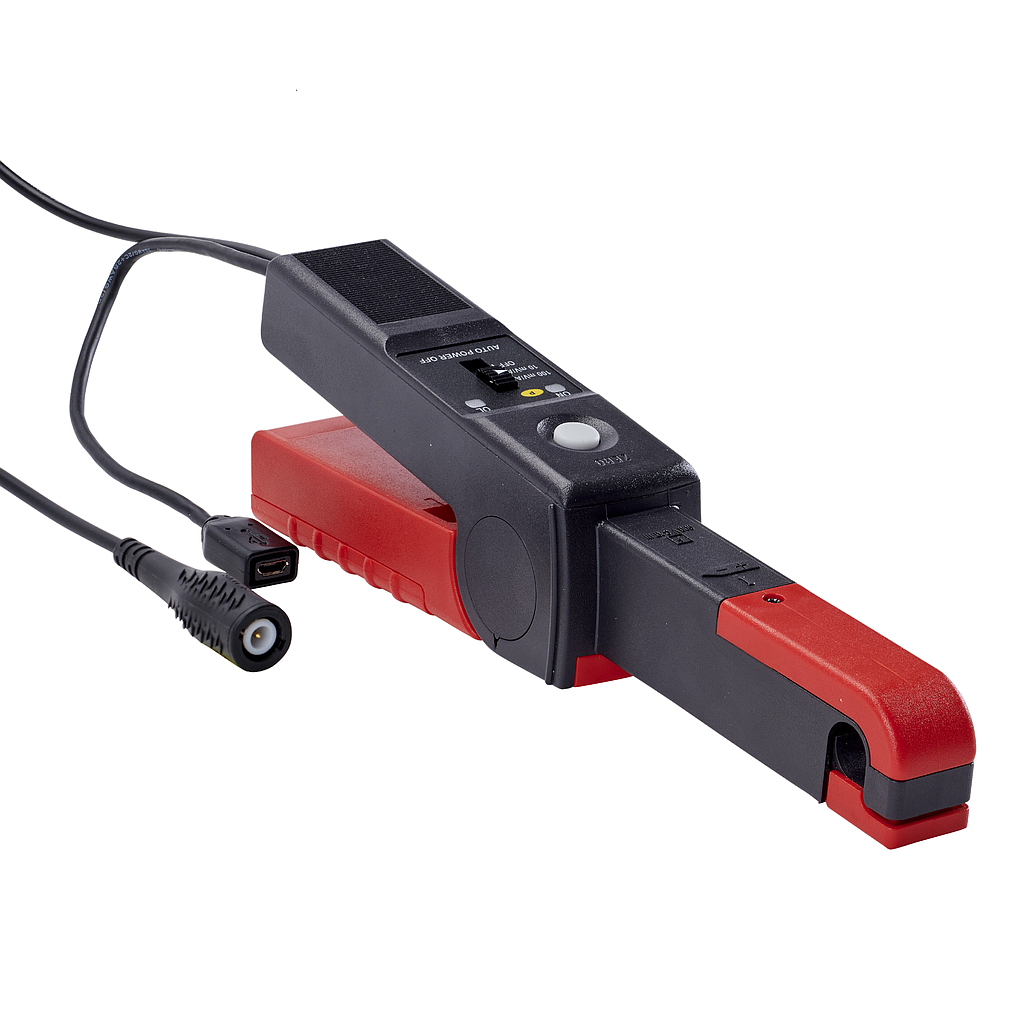

Chauvin Arnoux E27 Clamp AC/DC ປັດຈຸບັນ (for oscilloscopes, 0 mA~100 A peak, 100 kHz)
Clamping capacity: 11.8mm in diameter
Temperature: 23 ±5°C
Relative humidity: 20~75%RH
Position of the conductor: centred
Frequency of the measured signal: DC~65Hz sine wave
Powered:
by battery: 6.5~9V
external supply: 5V ±0.1V
External electric field: zero
External DC magnetic field (earth's field): < 40A/m
External AC magnetic field: zero
Impedance of the measuring instrument: ≥ 1MΩ and ≤ 100pF
Range / Intrinsic uncertainty / Phase shift (DC~65Hz)
0.1~10APeak / ≤ ±(3%L +5mV) / ≤ 1.5°
0.5~40APeak / ≤ ±(4%L +5mV) / ≤ 1°
40~100APeak / ≤ ±15%L / ≤ 1°
Dimensions (L x W x H): 231 x 36 x 67mm
Weight: approximately 330 g
Measurement lead: 2m long
USB cord: 15cm long
Protection: IP20
