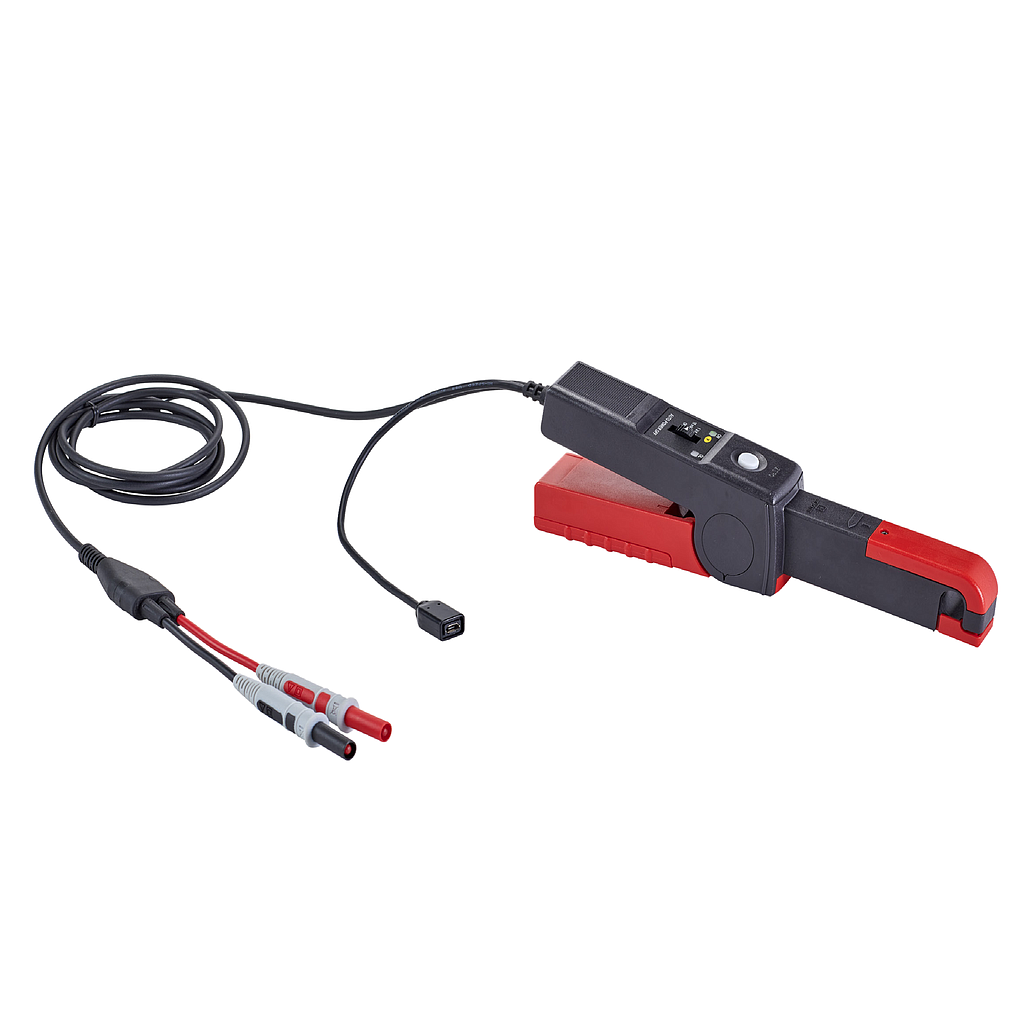

Chauvin Arnoux E25 Clamp AC/DC ປັດຈຸບັນ (11.8mm, 2~80ADC, 1.5~60AAC)
Clamping capacity: 11.8mm in diameter
Temperature: 23 ±5°C
Relative humidity: 20~75%RH
Position of the conductor: centred
Frequency of the measured signal: DC~65Hz sine wave
Powered:
by battery: 6.5~9V
external supply: 5V ±0.1V
External electric field: zero
External DC magnetic field (earth's field): < 40A/m
External AC magnetic field: zero
Impedance of the measuring instrument: ≥ 1MΩ and ≤ 100pF
Range:
0.005~2ADC/0.005~1.5AAC Intrinsic uncertainty: ≤ ±(2%R +5mV)
0.05~50ADC/0.05~40AAC Intrinsic uncertainty: ≤ ±(4%R +0,5 mV)
50~80ADC/40~60AAC Intrinsic uncertainty: ≤ ±12%R
Phase shift (DC~65Hz): ≤ 1°
Dimensions (L x W x H): 231 x 36 x 67mm
Weight: approximately 330 g
Measurement lead: 1.5m long
USB cord: 15cm long
Protection: IP20
