Chauvin Arnoux P01102132 POWER CALIBRATION KIT
Conponents
• Single phase power calibrator
- Voltage accuracy: < 0.025 % + 0.024 V from 10 VRMS to 300 VRMS from 50 Hz to 60 Hz and THD < 0.2 %.
- Current accuracy: < 0.10 % + 0.004 A from 10 mARMS to 5 ARMS and from 50 Hz to 60 Hz, and THD < 0.3 %
- Phase accuracy:< 0.15°
- Frequency accuracy: 50 Hz ± 0.1 Hz
• A DMM or a voltmeter AC RMS
AC voltage accuracy:
< 0.06 % R + 30 μV from 0 to 100 mV and from 50 Hz to 60 Hz
< 0.06 % R + 300 μV from 100 mV to 1V and from 50 Hz to 60 Hz
• A personal computer with a Windows 7 operating system.
• Microsoft .Net Framework 4.0
Casing
Casing: Polypropylene
Two voltage input safety plugs.
Connectors: Two current input safety plugs
Two shunt output voltage safety plugs
Switch: One four positions rotary switch
Cables Five voltage safety cords
Four current safety cords
Fuse holder One 6x32 fuse holder with 6.3 A 380V fuse
Dimensions: 273 x 247 x 130 mm.
Mass: 2.3 kg.

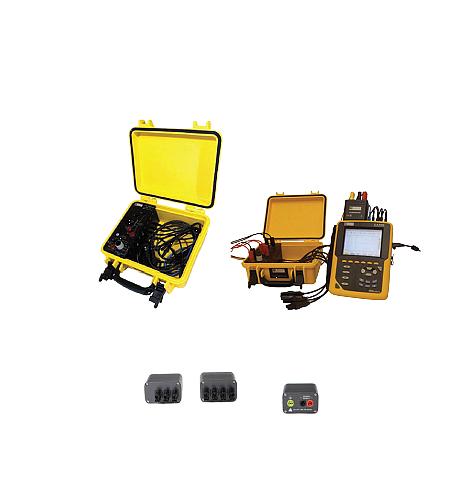

POWER CALIBRATION KIT P01102132 includes :
· 1 x connection suitcase
· 2 x CD Metrology Power Calibration Software and user manuals
· 1 x safety sheet
· 2 x shunts with Qualistar connections
