- Input
+ Low current: 5 A...4,500 A peak
+ Medium current: 5 A...4,500 A peak
+ High current: 5 A...4,500 A peak
+ AC: yes
- Output / Connections
+ Current:
+ Voltage: 4.5 V peak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 1 mV/A
+ Bandwidth (frequency in Hz): 5 Hz... 1MHz phase shift at 1kHz ≤ 1.5
+ Typical accuracy: ≤ 1 % + 0.3 A
datasheet
user guider
catalog vietnamese
catalog english

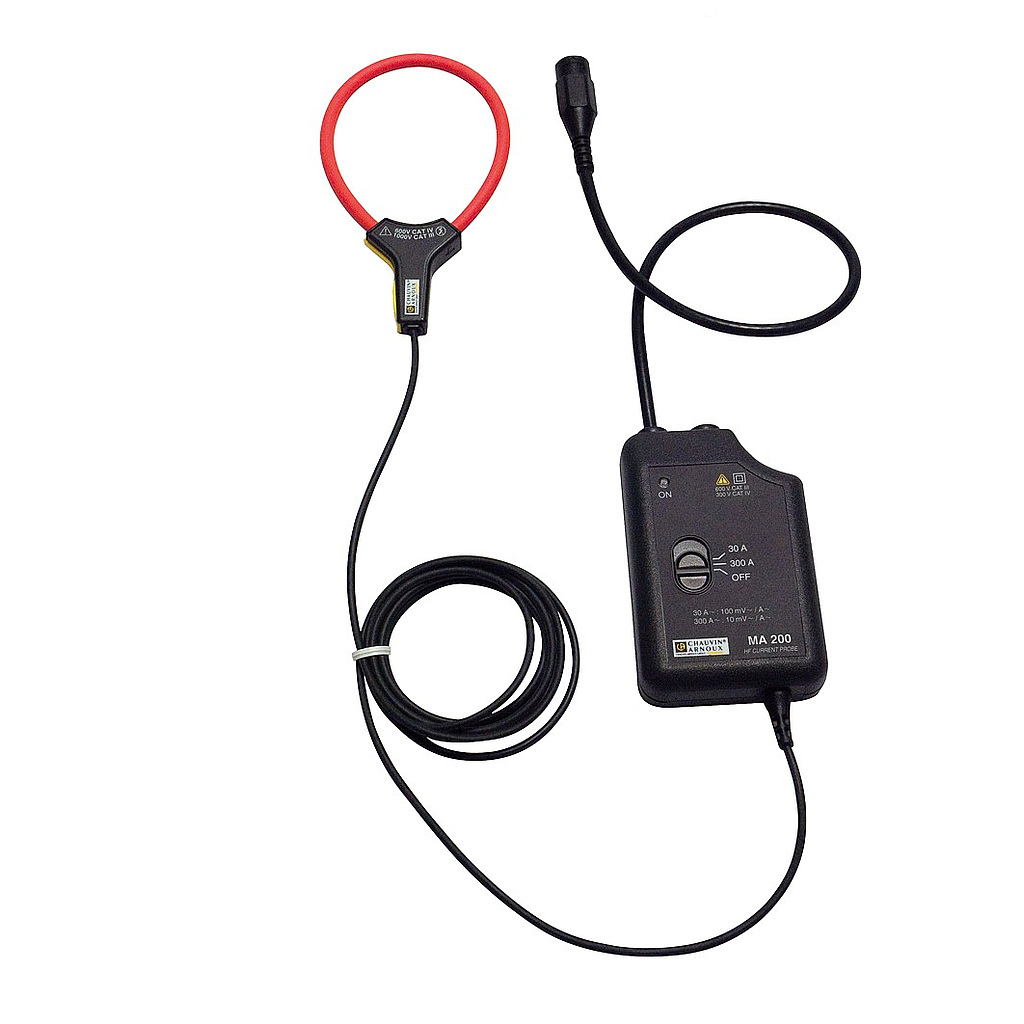

The MA200 Series is a family of "high-frequency" flexible sensors for viewing and measuring electrical or electrotechnical currents with significant variations and amplitude.
These "isolated current probes for oscilloscopes" offer a bandwidth of 1 MHz and can be used to analyse currents with complex forms, transients present in power electronics power supplies, welding units, etc., …
Main specifications:
