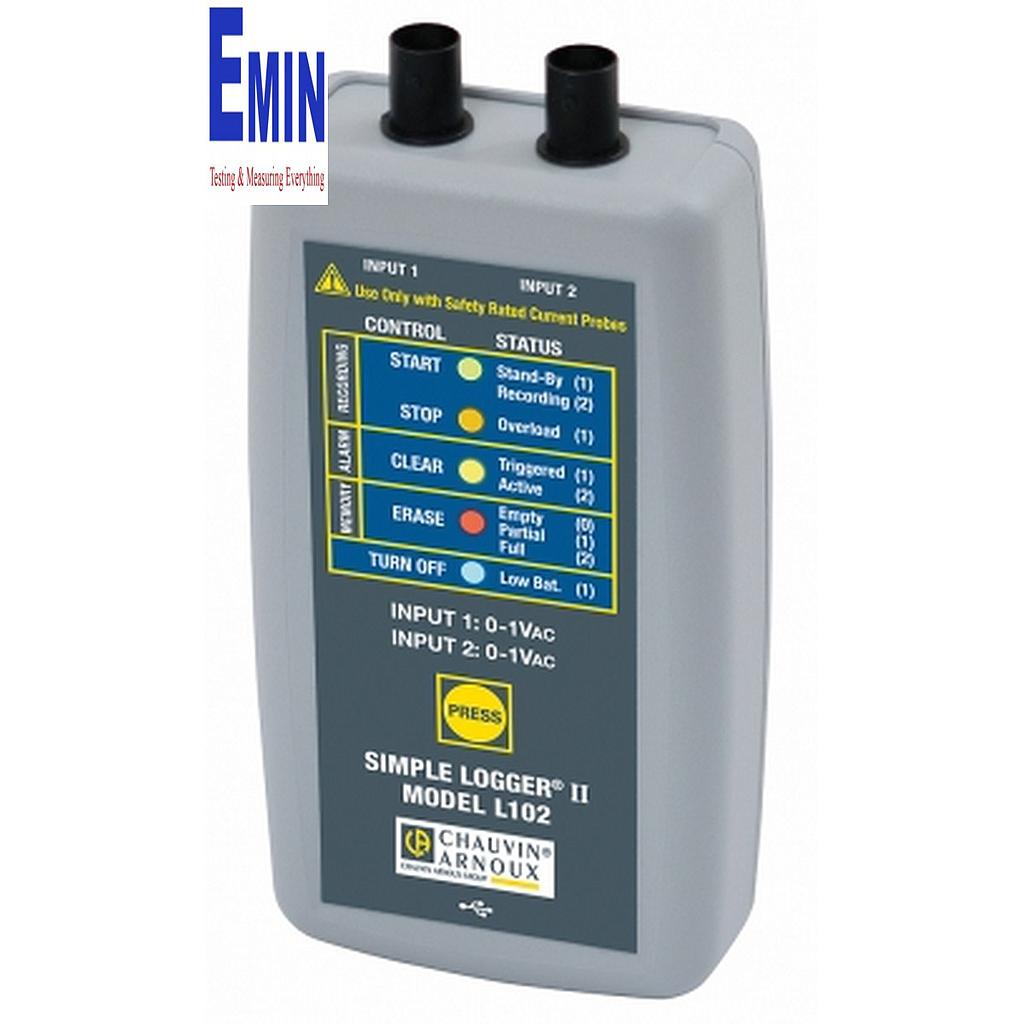

Manuafacturer: Chauvin Arnoux
Model : L102
Warranty : 12 month
Electrical Specification
- Channels: 2
- Input connection: BNC/ channel
- Current-probe output-voltage range: 0 to 1 Vac (depending on probe)
- Resolution: 0.1 mV
- Accuracy (50/60 Hz) 0 to 10 mV: unspecified 10 to 50 mV: ±(0.5 % R + 1 mV) 50 to 1000mV: ±(0.5 % R + 0.5 mV)
- Sample rate: 64 samples/cycle
- Storage rate: Programmable from 125 ms to 1 day
- Storage modes: Start/Stop, FIFO and Extended Recording Mode (XRM™)
- Recording length: 15 minutes to 8 weeks, programmable using DataView®
- Memory: 240,000 measurement (512 kB). The recorded data is stored in non-volatile memory & retained even if the battery is low or removed
- Communication: USB 2.0 optically isolated
- Power source: 2 x 1.5 V AA-cell alkaline batteries
- Battery life: 100 hours to > 45 days (depending on storage rate/recording length)
Mechanical Specification
- Dimensions: 136 x 70 x 32 mm (5.38 x 2.75 x 1.28")
- Max conductor size: Depends on current probe
- Weight (with battery): 180 g (6.4 oz)
- Safety rating: IEC 61010, 50 V CAT III
- Casing: UL94-V0
- Vibration: IEC 60068-2-6 (1.5 mm, 10 to 55 Hz)
- Shock: IEC 60068-2-27 (30G)
- Drop: IEC 60068-2-32 (1 m)
Environment Specification
- Operating temperature: -10 to +50 °C
- Storage temperature: -20 to +60 °C
State at delivery: type A to 5-pin mini-B USB 2 m, DataView® CD, two 1.5 V AA-cell alkaline batteries and user manual.
The Simple Logger II family of data loggers is a product line benefiting from advanced design and an excellent quality/price ratio when their specifications and functions are taken into account. The Simple Logger II L102 is ideal for the following applications: monitoring of split-phase loads and neutral/earth current, detection of intermittent problems, monitoring of harmonic currents with DATAVIEW, monitoring of machine loads, etc.
