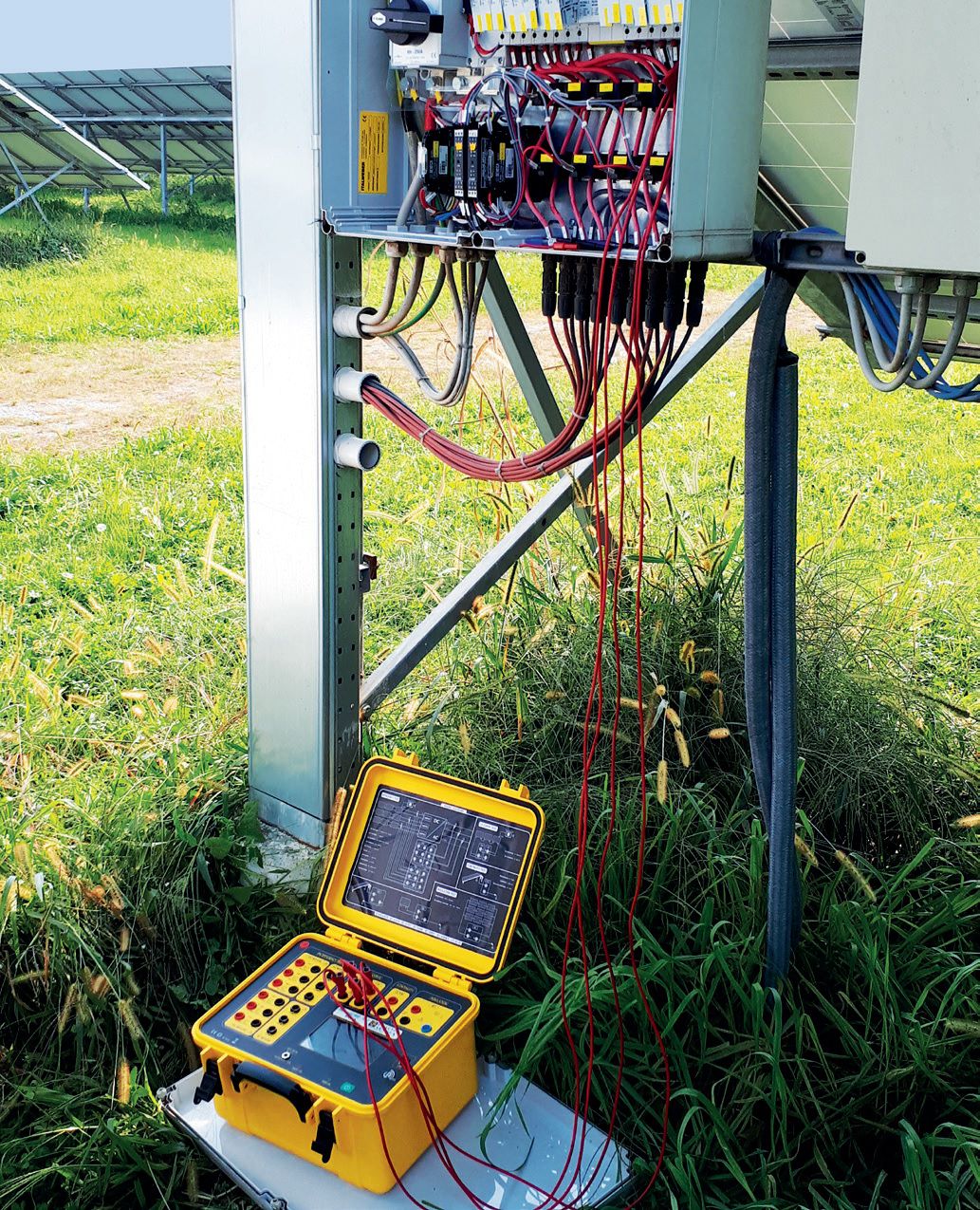

Chauvin Arnoux FTV500 ເຄື່ອງທົດສອບ Multifunction ສໍາລັບລະບົບ photovoltaic (999.9V /1400A)
VOLTAGE
DC
Range: from 3 to 999.9V
Resolution: 0.1V
Accuracy: 1%
AC
Range: from 3 to 700.0V
Resolution: 0.1V
Accuracy: 1.5%
CURRENT
DC
Range: from 1 to 1,400A
Resolution: 0.1-1A
Accuracy: 1%
AC
Range: from 1 to 3,000A
Resolution: 0.1-1A
Accuracy: 1%
ENVIRONMENTAL MEASUREMENTS (REMOTE UNIT)
IRRADIATION
Range: 50 to 2,000 W/m2
Resolution: 0.1 W/m2
Accuracy: 2.5%
AMBIENT TEMPERATURE/MODULE TEMPERATURE
Range: from -20°C to + 150°C
Resolution: 0.1°C
Accuracy: 1%
Pt100 sensor on remote unit
I-V CURVE (OPC & STC)
DC Voltage
Range: from 0.005 to 1000V
Resolution: 0.005-0.1V
Accuracy: 1%
DC Current
Range: from 0.005 to 15A (max 20A)
Resolution: 0.005-0.1A
Accuracy: 1%
Power
Range: from 5 to 9999W DC
Resolution: 1W
Accuracy: 1.5%
CONTINUITY
Range: from 0.01 to 99 Ω
Resolution: 0.01-1 Ω
Accuracy: 2% / test current > 200mA according to EN 61557-4
Display: TFT 16.7M colours with Optical Bonding glass, touch screen, dimensions 5”, resolution 800x480
Remote unit: Wi-Fi real-time transmission, real-time and data logging mode / synchronisation when signal is lost
Interface:
Instrument: Wi-Fi transmission and VNC remote control (Virtual Network Computing), USB
Remote unit: Wi-Fi transmission
Memory: Programmable internal database: sites/installations/companies/modules/measurements, with tree structure
Autonomy: over 10.000 blocks for all measurements, 600.000 measurements for data logging
Power Supply / Autonomy:
Instrument: Li-Ion rechargeable batteries with power supply 100-240V 50-60Hz / 15 hours at stand-by (programmable)
Remote unit: Li-Ion rechargeable batteries with power supply and USB cable / 15 hours at standby
Dimensions / Weight:
Instrument: 340 x 300 x 200 mm / about 6 Kg
Remote unit: 160 x 120 x 63 mm / about 1 Kg
Include
Instrument delivered with 1 carrying bag, power supply/battery charger, remote
unit + power cable / USB charger, AC clamp MiniFlex MA500 (x3), DC clamp
PAC500 (x3), cables 3m red and black (x6), cables I-V red and black, crocodile
clips red and black (x2), Flexible female rod 4 mm (x6), inclinometer, set of 12
colored insert/rings, certificate of conformity, user manual digital file format.
