Chauvin Arnoux F606 Clamp Multimeter (0.25~3,000 A, 0.15~1,700 V) | EMIN.COM.LA

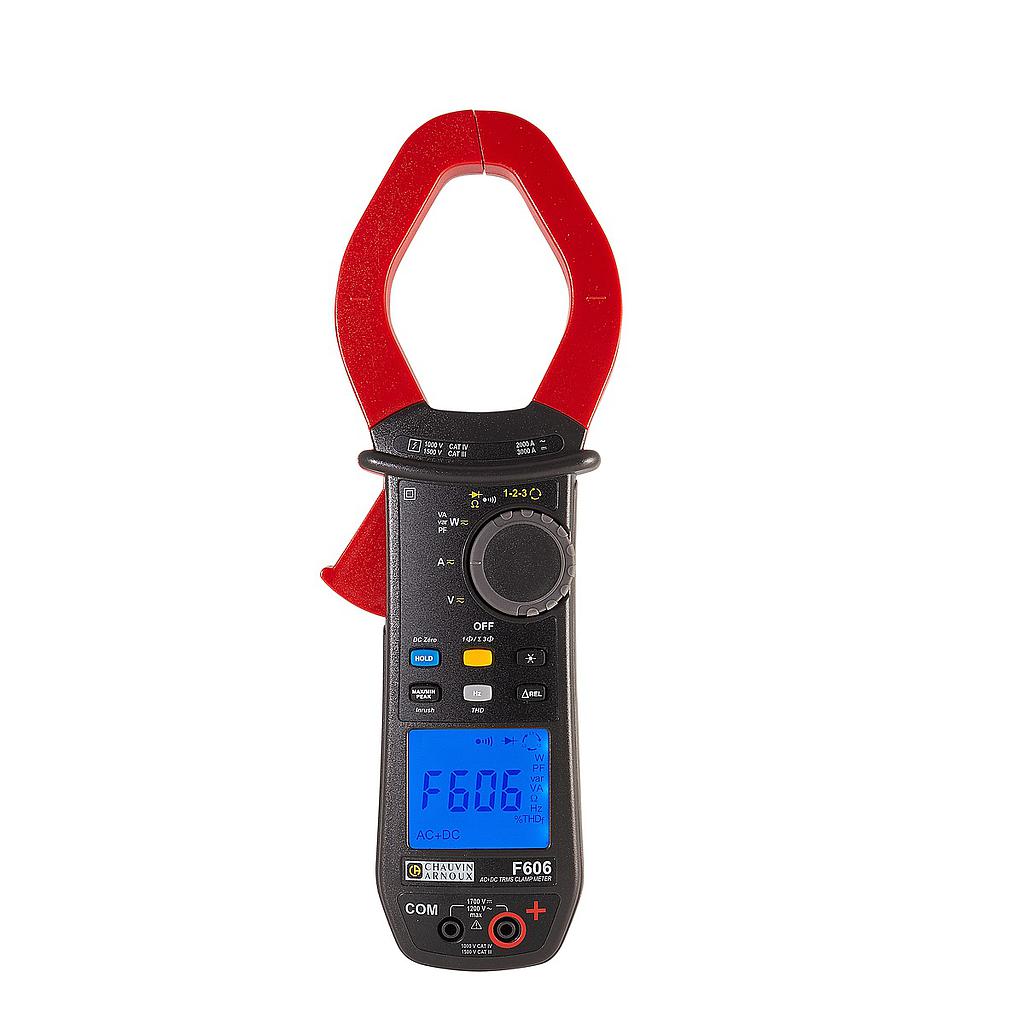

Chauvin Arnoux F606 Clamp Multimeter (0.25~3,000 A, 0.15~1,700 V)

Name: Chauvin Arnoux F606 Clamp Multimeter (0.25~3,000 A, 0.15~1,700 V)
Brand: Chauvin Arnoux
Availability: OutOfStock

ຜູ້ຜະລິດChauvin Arnoux(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelF606

P/NP01120966

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Ø Clamping diameter: 60 mm

Display: Backlit LCD

Resolutions: 10,000 counts

Number of values displayed: 1

Type of acquisition: TRMS

[AC, AC+DC]/DC

Autorange: Yes

Automatic AC / DC detection: Yes

A AC: 0.25 A to 2,000 A (3,000 A peak)

A DC: 0.25 A to 3,000 A

A AC+DC: 0.25 A to 2,000 A (3,000 A peak)

Best accuracy: 1% of reading + 3 counts

V AC: 0.15 V to 1,200 V (1,700 V peak)

V DC: 0 V to 1,700 V

V AC+DC: 0.15 V to 1,200 V

Accuracy: 1% of reading + 3 counts

Hz: Current: 5.0 Hz to 1,000 Hz; Voltage: 5.0 Hz to 20.00 kHz

Ohm: 0.1 Ω to 99.99 kΩ

Open-circuit voltage: ≤ 3.6 V

Measurement current: ≤ 550 µA

Audible continuity: Yes

Continuity threshold: Adjustable from 1 to 999 Ω

Diode test (semiconductor function): Yes

Nhiệt độ (Kiểu K):

°C: -60.0 đến +1,000.0°C

°F: -76.0 đến +1,832 °F

Single-phase and total three-phase power values: Yes

Active power values: 1 W to 2,400 kW

Reactive power values: 1 var to 2,400 kvar

Apparent power values: Yes / No

FP / DPF: Yes

Harmonic analyses: Yes

THDf / THDr: Yes/Yes

Phase rotation (2-wire method): Yes

True InRush (measurement of overcurrents): Yes

Motor startup: Yes

Load evolution: Yes

Hold: Yes

Min/Max: Yes

Peak+ / Peak-: Yes

RELativ ∆X / ∆X/X (%): Yes/Yes

Automatic Power Off: Yes

Ingress Protection: IP54

Electrical safety as per IEC 61010: 1000V CAT IV / 1500V CAT III

Power supply: 4 x 1.5 V AA batteries

Dimensions & weight: 111 x 296 x41 mm / 640 g

Datasheet

Manual
