- 3P Method
+ Range: 0.01 to 2,000 Ω
+ Resolution: 10 mΩ/100 mΩ/1 Ω
+ Coupling measurement: Yes
- 4P Method:
+ Range: 0.01 to 2,000 Ω
+ Resolution: 10 mΩ/100 mΩ/1 Ω
- Earth measurement with 2 clamps
- Resistivity:
+ Test method: Wenner et Schlumberger
+ Range: 0,01 to 99,9kΩ
+ Measurement frequency: 128Hz
- Dimensions / weight: 273 x 247 x 127 mm / 2.8 kg / 3.3 kg
- Safety: 50V CAT III, IEC 61010 & IEC 61557
State at delivery: delivered with 8 x 1.5 V LR6 batteries and 1 operating manual in 5 languages, Earth/Resistivity Kit )
datasheet
user guider
catalog vietnamese
catalog english

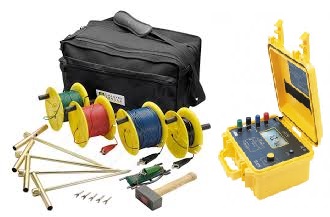

Earth and resistivity tester
In its rugged, leakproof case, the C.A. 6460 is easy to use, designed specifically for work in the field.
Wherever it is necessary to install an earth connection or characterize an existing earth, it helps to establish an accurate, fast and reliable diagnosis with optimum comfort and safety.
3-in-1 tester: resistivity, earth, coupling between two earths
measurement range: 0.01 to 2,000 Ω (3 automatic ranges)
change from 4-wire method to 3-wire method thanks to 1 removable captive bar between E and ES
3 fault presence indicators to validate measurement
measurement frequency: 128Hz
easy connection of stakes by means of colour-coded terminals
large backlit digital display with 2,000 counts
power supply: 8 x 1.5V batteries for an average battery life, constantly checked, of 4,500 measurements of 15s each
IP53 leakproof case with folding cover and carrying handle
compliant with IEC 61557 -1 and -5
electrical safety: EN 61010
dimensions: 273 x 247 x 127mm - weight: 2.8kg
